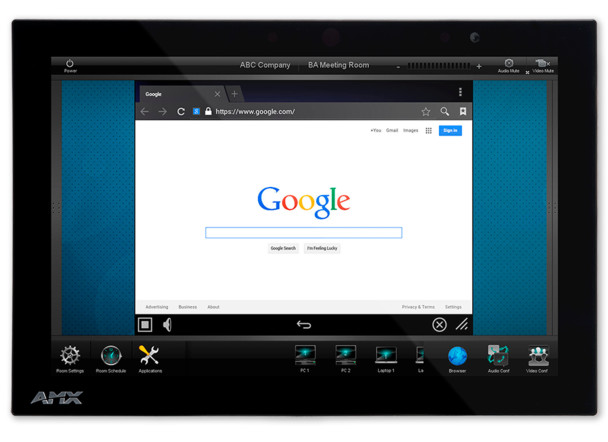

MXD-1001 10.1" Modero X® Series G5 Wall Mount Touch Panel

MXD-1001 / 10.1" Modero X® Series G5 Wall Mount Touch Panel

The MXD-1001 is a premium wall-mounted touch panel featuring the G5 graphics engine, delivering fast, smooth performance for demanding AV control applications. Designed for dedicated room control, scheduling, or content access, this elegantly-styled panel offers a quad-core processor capable of handling the most intensive tasks now and in the future. The MXD-1001 also includes a built-in web browser and document viewers, enabling real-time content access during meetings or lectures.

Key Features:

• G5 Graphics Engine & Quad-Core Processing: Smooth gesturing, swiping, dynamic reordering, and enhanced animations with transitions.

• Simplified Enterprise Updates: Deploy touch panel files and firmware across the network via URL for company-wide updates.

• Built-in Web Browser & Document Access: Preview and present content via web, USB, or cloud storage; integrated Enzo sharing support.

• Adjustable Security Modes: Customizable for access, networking, and communication.

• IPS Display: Provides wide viewing angles and accurate color reproduction from any position.

• Enhanced User Experience: Supports gesturing, swiping, dynamic reordering, and advanced animations.

• Flexible Mounting Options: Wall mount or optional rack mount via MXA-RMK-10.

• Dynamic Data Support: Use Listview buttons to display dynamic entries such as phonebooks, call logs, RSS feeds, and more.

Applications:

• Boardrooms & Conference Rooms: Offers simultaneous control of multiple systems while remaining visually unobtrusive.

• Higher Education: Perfect for lecture halls, performing arts theaters, and auditoriums requiring extensive control.

• Residential: Ideal for kitchens, bedrooms, or home offices to manage home automation systems.

• Scheduling Panels: High-end meeting rooms and auditoriums for scheduling and real-time data display.

• Reception Areas: Display master calendars and streaming information such as weather or stock quotes.

Specifications:

• Display Size (WH):

  • Landscape: 9.9" x 6.7" (252 mm x 170 mm), 12.0" diagonal

  • Portrait: 6.7" x 9.9" (170 mm x 252 mm), 12.0" diagonal

• Viewable Area (WH):

  • Landscape: 8.5" x 5.3" (217 mm x 136 mm), 10.1" diagonal

  • Portrait: 5.3" x 8.5" (136 mm x 217 mm), 10.1" diagonal

• Resolution: Landscape 1280x800, Portrait 800x1280

• Viewing Angle: Vertical ±89°, Horizontal ±89°

• Aspect Ratio: Landscape 16:9, Portrait 9:16

• Touch Overlay: Projected capacitive, multi-touch (3 simultaneous touches max)

• Graphics Engine: AMX G5

• Front Panel Components: Light sensor, proximity detector, camera, LED indicators, sleep button

• Power Consumption: Maximum 12.95 W

• Operating Temperature: 32° F to 104° F (0° C to 40° C)

• Networking: Static/dynamic IPv4, static IPv6
