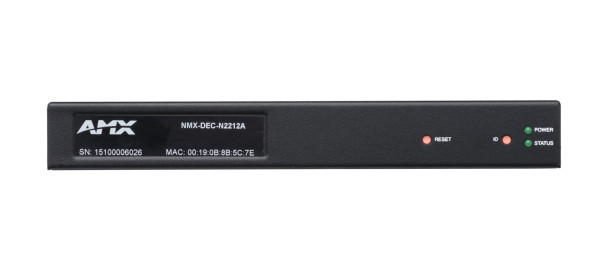

NMX-DEC-N2212A Decoder

NMX-DEC-N2212A Decoder Overview

The AMX SVSI N2000 Series leverages JPEG2000 compression to deliver HD, cinema-grade video over LAN, making it ideal for applications where video quality is a top priority. The NMX-DEC-N2212A decoder converts networked AV streams back to DVI or HDMI for display on any monitor. When paired with the NMX-ENC-N2121A encoder, virtually any video source can be distributed over an existing IP network, allowing any source to be routed to any display. This enables large, cost-effective switching and distribution systems without proprietary cabling or dedicated switching hardware.

The NMX-DEC-N2212A also features Local Play, which allows users to upload and store up to 8 playlists containing 64 JPEG or PNG files. If a video stream is lost, these stored images are displayed, preventing blank screens.

The decoder includes serial connectivity, a single network port, and AES67 audio support. Note that this model supports digital video output only.

Common Applications

The NMX-DEC-N2212A is ideal for matrix switching and distribution of high-quality HD video over LAN. Typical applications include:

• Enterprise environments

• Houses of worship

• Entertainment venues

• Stadiums

Key Features

• Input and Output Scaling: Video can be scaled at the input or output to seamlessly match any source to any display or projector while preserving image fidelity.

• Plug-and-Play: Auto-detect technology simplifies installation and reduces programming time.

• Onboard Control: Built-in event-driven control allows triggering of TCP/UDP commands to other IP-controllable devices.

• Unlimited Scalability: Supports large-scale video matrix deployments.

• Flexible Deployment: Available as a standalone unit or a card for use with the NMX-ACC-N9206 rack mount cage.

Specifications

Digital Video Input: Network video over Ethernet via RJ45 or fiber via 1G SFP
Video Outputs: HDMI, DVI-D (via passive adapter)
Supported Formats: HDMI, DVI-D (via adapter), HDCP content protection
Output Resolutions: Most common HD up to 1920×1200
Audio Input: Network video and audio via RJ45 (48 kHz, standard SVSI stream or AES67, user-selectable)
Audio Output: Embedded audio on HDMI or DVI-D (via adapter)
HDMI Audio Format: 8-channel PCM
Latency: 50 ms for 720p60; 140 ms for 1080p60
Communications: Ethernet 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, or Static IP

FG Number: FGN2212A-SA
