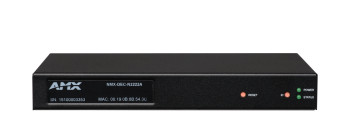

NMX-DEC-N2422A Decoder JPEG 2000 4K60 4:4:4 & HDR Video Over IP Decoder, Stand Alone with POE+, KVM, & AES-67

SKU:
FGN2422A-SA
UPC:
718878033661
  • NMX-DEC-N2422A Decoder JPEG 2000 4K60 4:4:4 & HDR Video Over IP Decoder, Stand Alone with POE+, KVM, & AES-67
  • NMX-DEC-N2422A Decoder JPEG 2000 4K60 4:4:4 & HDR Video Over IP Decoder, Stand Alone with POE+, KVM, & AES-67
  • NMX-DEC-N2422A Decoder JPEG 2000 4K60 4:4:4 & HDR Video Over IP Decoder, Stand Alone with POE+, KVM, & AES-67
  • NMX-DEC-N2422A Decoder JPEG 2000 4K60 4:4:4 & HDR Video Over IP Decoder, Stand Alone with POE+, KVM, & AES-67
  • NMX-DEC-N2422A Decoder JPEG 2000 4K60 4:4:4 & HDR Video Over IP Decoder, Stand Alone with POE+, KVM, & AES-67
  • NMX-DEC-N2422A Decoder JPEG 2000 4K60 4:4:4 & HDR Video Over IP Decoder, Stand Alone with POE+, KVM, & AES-67
  • NMX-DEC-N2422A Decoder JPEG 2000 4K60 4:4:4 & HDR Video Over IP Decoder, Stand Alone with POE+, KVM, & AES-67
$2,710.00

Description

AMX SVSI N2400 Series N2422A Overview

The N2400 Series N2422A encoders and decoders utilize JPEG2000 encoding to deliver cinema-quality video with sub-frame latency. Supporting 4K60 4:4:4, HDMI 2.0, HDCP 2.2, and HDR10, the N2400 Series enables full utilization of modern source and display devices. Designed for enterprise networks, these devices include Active Directory integration, 802.1X, SSL/TLS, and HTTPS, ensuring robust security. Operating on standard 1 Gbps networks and requiring only PoE+ power, the N2400 Series offers a scalable 4K60 4:4:4 solution for a wide range of applications.

Integration with AMX NetLinx, diverse control APIs, software, and web interfaces provides a flexible and easy-to-deploy solution.

Common Applications

  • Casinos, museums, and large entertainment venues

  • Sporting arenas and stadiums

  • University campuses and lecture halls

  • Active learning classrooms and high-resolution display environments

Key Features

  • 4K60 4:4:4 Support – Preserve full resolution and color fidelity.

  • High Dynamic Range (HDR) Support – HDR10 compatible.

  • HDMI 2.0 & HDCP 2.2 Support – Ensures compatibility with modern 4K sources and displays.

  • Advanced Security – Active Directory, 802.1X, SSL/TLS, HTTPS.

  • Gigabit Ethernet Operation – Cost-effective video distribution using existing network cabling.

  • Sub-Frame Latency – Delivering cinema-quality video with imperceptible delay.

  • PoE+ Powered – Simplifies installation; optional local 12VDC power.

  • Native NetLinx Integration – Simplifies AMX control setup.

Specifications

Video Inputs: Network video over Ethernet (RJ45) or fiber via 1G SFP port
Video Outputs: HDMI, DVI-D (via passive adapter)
Supported Resolutions (Progressive):

  • 1280x720@50/59.94/60Hz (720p)

  • 1280x800@60Hz

  • 1920x1080@50/59.94/60Hz (1080p)

  • 1920x1200@60Hz

  • 3840x2160@30/60Hz (2160p / UHD30 / UHD60)

  • 4096x2160@30/60Hz

Audio Inputs: Network PCM and AES67 audio over RJ45
Audio Outputs: Embedded audio on HDMI or DVI-D, and user-selectable balanced/unbalanced stereo via 5-pin Phoenix connector

Ports:

  • +12V 3A DC input

  • P0: Gigabit Ethernet with PoE+

  • P1: Gigabit SFP port (fiber transceiver/direct attach not included)

  • IR: 2-pin 3.5mm screw terminal

  • RS232: 3-pin 3.5mm screw terminal

  • Audio: 5-pin 3.5mm screw terminal

  • HDMI output

  • USB Mini-B control input (front)

  • 2× USB Type-A control inputs (front)

  • IR IN 3-pin 3.5mm screw terminal (front)

Environmental:

  • Temperature: 32°–104°F (0°–40°C)

  • Humidity: 10–90% RH (non-condensing)

  • Heat Dissipation: ~102 BTU/hr

Physical:

  • Dimensions (H×W×D): 1.05” × 7.888” × 5” (2.67 × 20.04 × 12.7 cm)

  • Weight: 1.54 lbs (0.68 kg)

Regulatory Compliance: FCC, CE, NTRL
FG Number: FGN2422A-SA
