NMX-ENC-N1115-WP Wallplate Encoder Minimal Proprietary Compression Video Over IP N1115 MPC Decor Style Wallplate Encoder with KVM WHITE

N1000 Series AV-over-IP Encoder Overview

The N1000 Series Encoders and Decoders offer a cost-effective, local AV-over-IP switching platform that converts video into a lightly compressed IP stream. This method delivers high image quality with very low latency, making it ideal for point-to-point distribution, compact 2×1 switching, and scalable systems up to 32×32—using standard, off-the-shelf Layer-3 network switches.

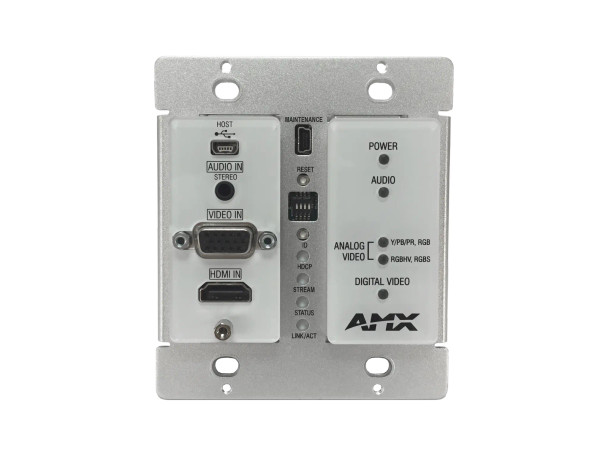

The NMX-ENC-N1115-WP incorporates the advanced encoding performance of the NMX-ENC-N1133 into a compact 2-gang wallplate design. It can be mounted in walls, lecterns, or floor boxes using a standard US 2-gang back box, and requires only a single category cable to provide both power and Ethernet connectivity.

Typical Applications

The NMX-ENC-N1115 is well suited for video distribution systems and matrices smaller than 32×32. Common installations include:

• Conference rooms

• Huddle spaces

• Lecterns (internal or adjacent mounting)

Key Features

• Sub-Frame Latency: Combined encoding and decoding latency of only 10 ms at 60 fps.

• Minimal Proprietary Compression (MPC): Visually lossless compression applied to all supported resolutions.

• Wallplate Design: Fits into a standard 2-gang US back box for easy installation in walls, floors, or lecterns.

• Power over Ethernet (PoE): Removes the need for an external power supply.

• Flexible Configuration: Supports point-to-point links, simple 2×1 switching, or cost-effective matrices up to 32×32.

• Dedicated Inputs: Separate HDMI and VGA connectors for source flexibility.

Specifications

Video

• Digital Inputs: HDMI, DVI-D*, Dual-Mode DisplayPort (DP++)*

• Analog Inputs: HD-15 VGA, Component*

• Formats Supported: HDMI, DVI-D*, DP++*, HDCP, RGBHV, YPbPr

• Progressive Resolutions: Common HD formats up to 1920×1200

• Interlaced Resolutions: 1080i60

• Analog Resolutions: Up to 1920×1200 @ 60 Hz (also supports 59.94 Hz)

• Output Resolution: Matches input

• A/D Conversion: 8-bit, 165 MHz per color channel

• Color Sampling: 4:2:2

Supported via passive adapters. Composite and S-Video (YC) are not supported.

Audio

• Inputs: Embedded HDMI audio (DVI-D via adapter) or analog stereo

• Output: Ethernet

• Formats: 8-channel PCM, 2-channel stereo

• A/D Conversion: 16-bit at 32 kHz, 44.1 kHz, and 48 kHz

Performance

• Latency: 10 ms at 60 fps (encode + decode)

• Bandwidth: Approximately 840 Mb/s, depending on resolution

Note: Network latency is additional. Video scaling adds one frame of latency (17 ms at 60 fps).

Communications

• Ethernet: 10/100/1000 Mbps, auto-negotiating, DHCP, Auto IP, Static IP

• HDMI: HDCP support with EDID management

Ports

• P0 (RJ45): Gigabit Ethernet for network AV, control, and PoE

• HDMI IN: Digital video input

• VGA IN: DB-15 analog video input

• USB Host: USB-B

• USB Maintenance: Mini-USB

Controls and Indicators

• Reset Button: Recessed; performs a warm restart without altering settings

• Power LED: Green when powered

• Audio LED: Green when audio is active

• Analog Video LED: Green when analog video is detected

• Digital Video LED: Green when digital video is detected

• HDCP LED: Green when HDCP content is present

• Stream LED: Green during active video streaming

• Status LED: Flashing green during normal operation

• Link/Activity LED: Flashing yellow with network traffic

Power

• Power Source: Power over Ethernet

• Standard: IEEE 802.3af Class 3 / 802.3at Type 1

• Can be powered by a PoE-enabled switch or injector

• Point-to-point encoder-to-decoder setups require a PoE injector

PoE must be supplied by compliant Power Sourcing Equipment (PSE) and is intended for intra-building use only.

Environmental

• Operating Temperature: 0°C to 40°C (32°F to 104°F)

• Storage Temperature: −30°C to 70°C (−22°F to 158°F)

• Operating Humidity: 10%–90% RH, non-condensing

• Storage Humidity: 0%–90% RH, non-condensing

• Heat Dissipation: Up to ~26 BTU/hr

General

• Dimensions (H × W × D): 4.06" × 3.5" × 2.25" (10.31 × 8.84 × 5.72 cm)

• Weight: 0.75 lb (0.34 kg)

• Cooling: Passive convection through front, rear, and top vents

Installation and Compliance

• Mounts to standard US 2-gang back boxes

• Compatible with décor-style wallplates (not included)

• Certifications: FCC, CE, NTRL

Accessories and Compatibility

• Compatible with NMX-ENC-N1222, NMX-ENC-N1233, NMX-ENC-N1512, and NMX-NVR-N6123

• Recommended PoE Injector: PS-POE-AT-TC (FG423-84), 802.3at compliant

Ordering Information

• FGN1115-WP-WH – White

• FGN1115-WP-BL – Black
