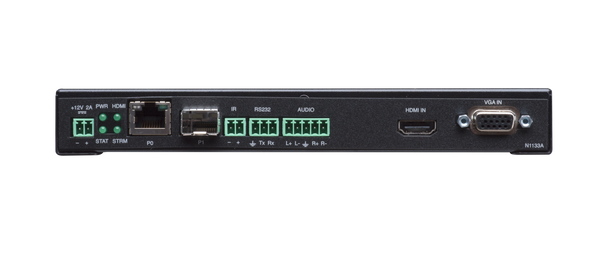

NMX-ENC-N1133A-C Encoder Card

NMX-ENC-N1133A-C Encoder Overview

The NMX-ENC-N1133A-C delivers the full capabilities of the NMX-ENC-N1133A in a card-style form factor designed for use with the NMX-ACC-N9206 2RU Rack Mount Cage. This design enables a clean, high-density rack-mounted solution for deploying multiple encoders and decoders. The encoder features enhanced digital pixel accuracy and reduces already imperceptible latency by half, ensuring instant delivery of visually lossless video streams.

The unit supports separate HDMI and VGA/RGB inputs, Power over Ethernet (PoE), AES67 audio, and includes a dedicated SFP fiber port. The fiber interface enables visually lossless video transport over fiber-only networks and extends signal distances well beyond the limitations of standard category cabling. Newly added USB connectivity allows USB-over-IP extension for select touch displays and KVM applications.

N1000 Series AV-over-IP Platform

The N1000 Series Encoders and Decoders provide a cost-effective AV-over-IP switching solution that converts video into a lightly compressed IP stream. This flexible architecture supports configurations ranging from a simple 2×1 seamless presentation switcher to mid-sized matrix systems, all built on standard, off-the-shelf network switches.

Key Features

• Output Scaling: Seamless output scaling allows any source at any resolution to be displayed on any monitor or projector while maintaining video quality.

• 1-Frame Latency: Performance equivalent to HDBaseT for real-time video delivery.

• Minimal Proprietary Compression (MPC): Visually lossless compression applied across all supported resolutions.

• Optional Compression Disable: Ability to turn off compression entirely when required.

• Power over Ethernet (PoE): Eliminates the need for an external power supply.

• Infrared (IR) Support: IR emitter connection enables control of cost-effective, IR-only display devices.

• Onboard Control: Built-in, event-driven control allows TCP/UDP command triggering to other IP-controllable devices.

• System Flexibility: Cost-effective matrix solutions up to 32×32, with expansion options available through system design services.

• Dedicated Inputs: Separate HDMI and VGA inputs for flexible source connectivity.

• SFP Fiber and RJ45 Ports: Supports fiber or copper networks, with USB control inputs for keyboard and mouse operation in KVM-over-IP applications.

• Standalone or Card-Based: Available as a standalone device or as a card for installation in the NMX-ACC-N9206 rack mount cage.

Specifications

Video

• Digital Video Inputs: HDMI, DVI-D (via passive adapter), RGB/VGA

• Analog Video Inputs:

  • HD-15 VGA

  • Component (via passive adapter)

• Video Output:

  • Network video over Ethernet (RJ45)

  • Network video over fiber (1G SFP)

  • HDMI, DVI-D (via passive adapter)

Supported Formats

• HDMI

• DVI-D (via passive adapter)

• Dual-Mode DisplayPort (DP++) (via passive adapter)

• HDCP content protection

• RGBHV, YPbPr
