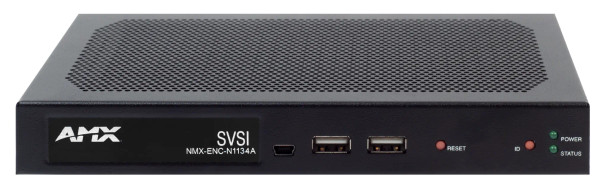

NMX-ENC-N1134A Encoder

NMX-ENC-N1134A Encoder Overview

The NMX-ENC-N1134A brings the high-performance encoding capabilities of the N1000 Series to HD-SDI sources. It allows SDI video to be integrated directly onto the network without the need for an SDI-to-HDMI converter, reducing cost and complexity. Unlike most networked AV solutions that rely on H.264 or H.265—introducing significant compression and latency—this encoder uses a minimally compressed IP format, maintaining excellent video quality and delivering it with imperceptible latency. Once on the network, the SDI signal can be decoded using any N1000 Series decoder.

The N1000 Series Encoders and Decoders provide an affordable local AV-over-IP switching platform that packetizes video into a lightly compressed IP stream. This allows deployment from small 2×1 presentation switchers to large 32×32 matrix switchers, using standard Layer-3 network switches. Any source can be routed to one or more displays over Cat5e cable through Layer-2 or Layer-3 network infrastructure.

Common Applications

The NMX-ENC-N1134A is ideal for live camera feeds in environments such as:

• Lecture halls

• Corporate town halls

• Training rooms

Key Features

• SDI Input: Distribute HD-SDI video over the network without an additional SDI-to-HDMI converter.

• Sub-Frame Latency: Combined encode and decode latency of 10 ms at 60 fps, effectively imperceptible and ideal for live video.

• Minimal Proprietary Compression (MPC): Visually lossless compression applied to all resolutions.

• Power over Ethernet (PoE): Eliminates the need for a local power supply and simplifies installation.

• Native NetLinx Integration: Streamlines integration with AMX control systems, reducing installation costs.

Specifications

Video

• Digital Input: HD-SDI

• Video Output: N1XXX-compatible network stream + HD-SDI passthrough

• Supported Video Formats: SMPTE 425, SMPTE 424, SMPTE 292, SMPTE 259-C

• Output Resolution: Matched to input

• Pass-Through Resolution: Matched to input

Audio

• Input: Analog stereo (2-channel) and embedded audio from HD-SDI (formats per SMPTE 425, 424, 292, 259-C)

• Analog-to-Digital Conversion: 16-bit at 32 kHz, 44.1 kHz, and 48 kHz

• Output: Ethernet audio at 48 kHz, selectable between standard SVSI stream or AES67

Latency

• Video: 10 ms at 60 fps

• Audio: SVSI audio stream synchronized to video; AES67 adjustable from 1 ms to 17 ms

Communications

• Ethernet: 10/100/1000 Mbps, auto-negotiating, full/half duplex, DHCP, Auto IP, and Static IP

• HDMI: HDCP and EDID management (see full datasheet for details)

Ordering Information

• FG Number: FGN1134A
