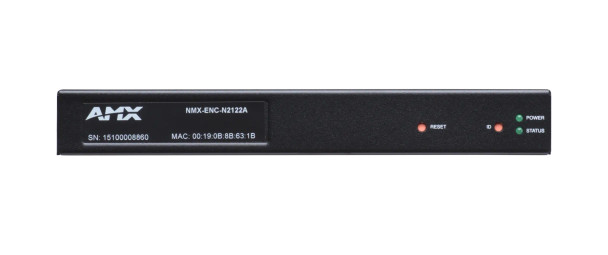

NMX-ENC-N2122A Encoder

NMX-ENC-N2122A Encoder Overview

The NMX-ENC-N2122A encodes and distributes virtually any video source across an existing IP network, making it accessible to any endpoint in the facility. When paired with an NMX-DEC-N2222A or NMX-DEC-N2212A decoder, streams can be converted back to HDMI or DVI for display on monitors. This flexibility allows large, cost-effective switching and distribution systems without the need for proprietary cabling or dedicated switching hardware.

The encoder includes IR, serial, balanced audio, two network ports (one PoE), AES67 support, and a local video pass-through port, and can auto-detect analog or digital video input.

The AMX SVSI N2000 Series uses JPEG2000 compression to deliver HD, cinema-grade video over LAN, ideal for applications where video quality is paramount. Users can easily adjust video quality and bandwidth through a web-based interface to optimize each installation.

Common Applications

The NMX-ENC-N2122A is ideal for matrix switching and high-quality video distribution in environments such as:

• Enterprise facilities

• Houses of worship

• Entertainment venues

• Stadiums

Key Features

• Input and Output Scaling: Seamlessly scale any source at any resolution to any display or projector while maintaining video fidelity.

• Power over Ethernet (PoE): Eliminates the need for local power supply and simplifies installation. Units can also be powered locally via 12VDC for high-density rack installations.

• Infrared (IR) Support: IR emitter connection enables control of low-cost, IR-only displays.

• Onboard Control: Built-in, event-driven control allows TCP/UDP commands to other IP-controllable devices.

• Unlimited Scalability: Supports large-scale deployments across networks of any size.

• Pass-Through HDMI: HDMI interface enables local display integration, useful for desktop applications.

• Standalone or Card-Based: Available as a standalone unit or card for use with the NMX-ACC-N9206 rack mount cage.

Specifications

Video

• Digital Video Inputs: HDMI, DVI-I (via passive adapter)

• Analog Video Inputs: HD-15 VGA, Component (via passive adapter)

• Video Output: Network video over Ethernet via RJ45

• Supported Formats: HDMI, DVI-D (via adapter), Dual-Mode DisplayPort (DP++ via adapter), HDCP content protection, RGBHV, YPbPr
