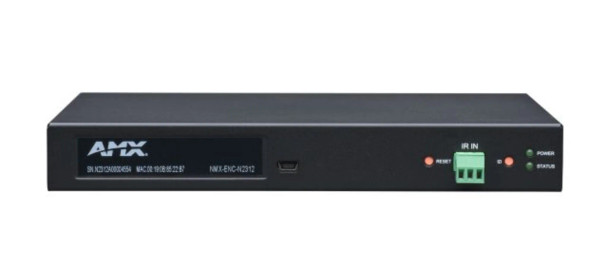

NMX-ENC-N2312 Encoder N2300 Series 4K UHD Video over IP Stand Alone Encoder with KVM, PoE

NMX-ENC-N2312 Encoder & NMX-DEC-N2322 Decoder Overview

The NMX-ENC-N2312 Encoder and NMX-DEC-N2322 Decoder deliver a flexible, high-performance Digital Media Distribution and Switching solution for 4K applications up to 4096×2160 with HDCP 2.2 support. Utilizing JPEG2000 encoding, this pair provides ultra-low latency, making it ideal for highly sensitive applications such as live action streaming.

Any source can be routed to one or multiple displays using layer-2 / layer-3 switches over standard Cat5e cabling. The N2312 supports input scaling, bi-directional serial, IR control, embedded 7.1 audio, and KVM-over-IP extension, and is available as a card version compatible with the N9206 rack cage for high-density deployments.

Key Features

• Design Flexibility: Start as small as 1×1 and expand incrementally by adding encoders/decoders.

• Power over Ethernet (PoE): Eliminates the need for local power supply; units can also run on 12VDC for rack-mountable, high-density setups.

• Advanced Security: Supports SSL/TLS and HTTPS for enterprise network protection.

• Infrared (IR): Control IR-only display devices via emitter connection.

• Fast Installation: Phoenix connectors for Power, IR, RS232 serial, and analog audio.

• Audio Support: Embedded 7.1 digital audio or balanced/unbalanced analog audio.

• Pass-Through HDMI: Enables easy local display connection.

• Multiple Connection Options: RJ-45, SFP network ports, HDMI video connections.

• KVM Support: Single USB-B for keyboard/mouse over IP.

• Native NetLinx Integration: Recognized automatically in NetLinx Studio.

Video Specifications

• Digital Inputs: HDMI 2.0, DVI-D*, Dual-Mode DisplayPort (DP++)* (*via passive adapters)

• Analog Inputs: VGA (HD-15), Component (via passive adapter)

• Video Outputs: Network video via RJ45 or SFP+ port, HDMI, DVI-D*

• Supported Formats: HDMI 2.0, DVI-D, DP++, HDCP 2.2, RGBHV

• Progressive Resolutions: 720×480p60 to 4096×2160 4:2:0@30Hz (4K30), 1920×1200 HD

• Interlaced Resolutions: 1080i50 / 1080i60

• Analog Resolutions: VGA up to 1920×1200, pixel clock 27–165 MHz

• Analog-to-Digital Conversion: 8-bit, 165 MHz per color channel

Audio Specifications

• Input: HDMI embedded audio or analog stereo (balanced/unbalanced)

• Output: Ethernet or HDMI/DVI-D embedded audio

• HDMI Audio Format: 8-channel PCM

• Analog Audio Format: Stereo 2-channel

• Sampling Rate: 48 kHz

Latency & Network

• Latency: 17 ms at 1080p60; 34 ms at 4K30 (encode + decode)

• Ethernet: 10/100/1000 Mbps, auto-negotiating, full/half duplex, DHCP, Auto IP, Static IP

• HDMI: HDCP and EDID management

FG Number: FGN2312-SA
