NMX-ENC-N2412A-C Encoder Card JPEG 2000 4K60 4:4:4 & HDR Video Over IP Encoder Card with POE+, KVM, & AES-67

AMX SVSI N2400 Series Overview

The AMX SVSI N2400 Series leverages JPEG2000 encoding to deliver cinema-quality video with sub-frame latency. Supporting 4K60 4:4:4, HDMI 2.0, HDCP 2.2, and HDR, these encoders and decoders allow end users to maximize the quality of their sources and displays. Operating over standard 1 Gbps networks with only PoE+ power, the N2400 Series provides a highly scalable 4K60 solution for demanding professional AV applications.

The series also supports enterprise-grade security, including Active Directory integration, 802.1X, SSL/TLS, and HTTPS, ensuring safe and controlled network video distribution. Native NetLinx integration simplifies AMX control deployments.

Applications

The N2400 Series is ideal for high-resolution, large-scale video distribution, including:

• Casinos

• Sporting arenas

• Museums

• Lecture halls and university campuses

• Active learning environments

• Any venue where 4K60 UHD video with professional-grade fidelity is required

Key Features

• 4K60 4:4:4 Support: Preserve full resolution and color space for today’s 4K content.

• High Dynamic Range (HDR) Support: Supports HDR10 for enhanced color and contrast.

• HDMI 2.0 & HDCP 2.2: Fully compatible with the latest 4K sources and displays.

• Enterprise Security: Active Directory, 802.1X, SSL/TLS, HTTPS.

• Gigabit Ethernet Operation: Cost-effective distribution over existing Cat5e/6 cabling.

• Sub-Frame Latency: Provides cinema-quality video with imperceptible delay.

• PoE+ Powered: Eliminates the need for local power supplies, reducing installation complexity.

• Native NetLinx Integration: Simplifies AMX control setup and management.

Specifications

Video Inputs: HDMI, DVI-D, Dual-Mode DisplayPort (DP++), RGB/YUV (DVI-D and DP++ supported via passive adapter)
Video Outputs: Network video over RJ45 or fiber via 1G SFP port

Supported Video Resolutions:

HDMI / DVI Progressive:

• 720×480@60Hz, 1024×768@60Hz, 1280×720@60Hz, 1600×1200@60Hz, 1920×1080@60Hz

• 2560×1440@60Hz (QHD60), 3840×2160@30Hz (UHD30 / 4K30), 3840×2160@60Hz (4K60), 4096×2160@30Hz (DCI 4K30), 4096×2160@60Hz (DCI 4K)

VGA:

• 640×480@60Hz to 1920×1080@60Hz (supports 59.94Hz refresh rates)

Component:

• 480p, 576p, 720p50, 720p60, 1080p24, 1080i50, 1080i60, 1080p30, 1080p50, 1080p60

Audio Inputs: Embedded HDMI/DVI audio or Analog Stereo (Balanced/Unbalanced)
Audio Outputs: Network PCM and AES67 over RJ45

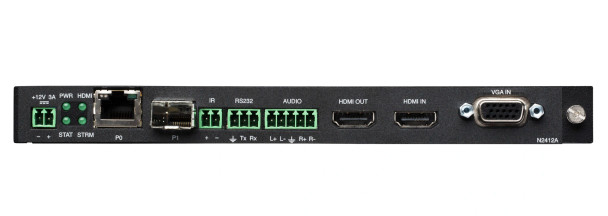

Ports:

• +12V 3A DC input

• P0: Gigabit Ethernet with PoE+

• P1: 1G SFP port

• IR: 2-pin 3.5mm screw terminal

• RS232: 3-pin 3.5mm screw terminal

• Audio: 5-pin 3.5mm screw terminal

• HDMI input/output, DB15 analog video input

• USB Mini-B (front panel), 2× USB-A (front panel), IR IN 3-pin

Environmental:

• Temp: 32°–104°F (0°–40°C)

• Humidity: 10–90% RH (non-condensing)

• Heat Dissipation: ~102 BTU/hr

Regulatory Compliance: FCC, CE, UL, NTRL

FG Number: FGN2412A-CD
