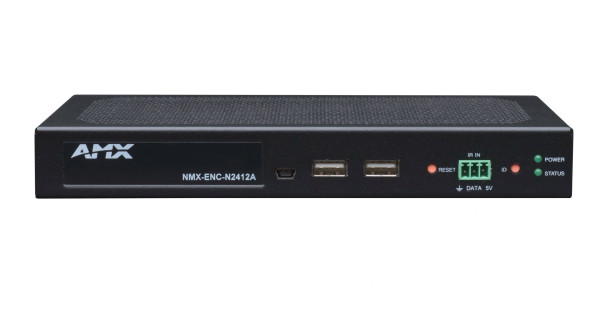

NMX-ENC-N2412A Encoder JPEG 2000 4K60 4:4:4 & HDR Video Over IP Encoder, Stand Alone with POE+, KVM, & AES-67

AMX SVSI N2400 Series Overview

The N2400 Series encoders and decoders use JPEG2000 encoding to deliver cinema-quality video with sub-frame latency. These products support 4K60 4:4:4, HDMI 2.0, HDCP 2.2, and HDR10, enabling end users to fully leverage their source and display devices. Designed with enterprise security in mind, the N2400 Series supports Active Directory integration, 802.1X, SSL/TLS, and HTTPS. Operating over standard 1 Gbps networks and requiring only PoE+ power, the N2400 Series provides a scalable, high-performance 4K60 solution.

The devices integrate seamlessly with AMX NetLinx and leverage control APIs, software, and web interfaces optimized for simple yet flexible deployment.

Common Applications

The N2400 Series is ideal for:

• Casinos

• Sporting arenas

• Museums and galleries

• Lecture halls and university campuses

• Active learning spaces

• Any venue requiring high-resolution, large-scale video distribution

Key Features

• 4K60 4:4:4 Support – Maintain full resolution and color fidelity for today’s 4K content.

• High Dynamic Range (HDR) Support – HDR10 compatibility for enhanced color and contrast.

• HDMI 2.0 & HDCP 2.2 Support – Ensures compatibility with the latest 4K sources and displays.

• Advanced Security – Active Directory, 802.1X, SSL/TLS, and HTTPS.

• Gigabit Ethernet Operation – Cost-effective video distribution over existing cabling.

• Sub-Frame Latency – Cinema-quality video with imperceptible delay.

• PoE+ Powered – Simplifies installation and reduces cost; local 12VDC power optional.

• Native NetLinx Integration – Reduces AMX control installation effort.

Specifications

Video Inputs: HDMI, DVI-D, Dual-Mode DisplayPort (DP++), RGB/YUV (DVI-D & DP++ via passive adapter)
Video Outputs: Network video over RJ45 or fiber via 1G SFP

Supported Video Resolutions:

HDMI / DVI Progressive: 720×480@60Hz, 1024×768@60Hz, 1280×720@50/60Hz, 1600×1200@60Hz, 1920×1080@50/60Hz, 2560×1440@60Hz, 3840×2160@30/60Hz, 4096×2160@30/60Hz, and 3440×1440@50/60Hz

VGA: 640×480@60Hz up to 1920×1080@60Hz (supports 59.94Hz refresh rates)

Component: 480p, 576p, 720p50/60, 1080p24/30/50/60, 1080i50/60

Audio Inputs: Embedded HDMI/DVI audio or analog stereo (balanced/unbalanced)
Audio Outputs: Network PCM and AES67 audio over RJ45

Ports:

• +12V 3A DC input

• P0: Gigabit Ethernet with PoE+

• P1: 1G SFP port

• IR: 2-pin 3.5mm screw terminal

• RS232: 3-pin 3.5mm screw terminal

• Audio: 5-pin 3.5mm screw terminal

• HDMI input/output

• DB15 analog video input

• USB Mini-B (front panel)

• 2× USB-A (front panel)

• IR IN 3-pin (front panel)

Environmental:

• Temperature: 32°–104°F (0°–40°C)

• Humidity: 10–90% RH (non-condensing)

• Heat Dissipation: ~102 BTU/hr

Physical:

• Dimensions (H×W×D): 1.05” × 7.888” × 5” (2.67 × 20.04 × 12.7 cm)

• Weight: 1.65 lbs (0.75 kg)

Regulatory Compliance: FCC, CE, UL, NTRL
FG Number: FGN2412A-SA
