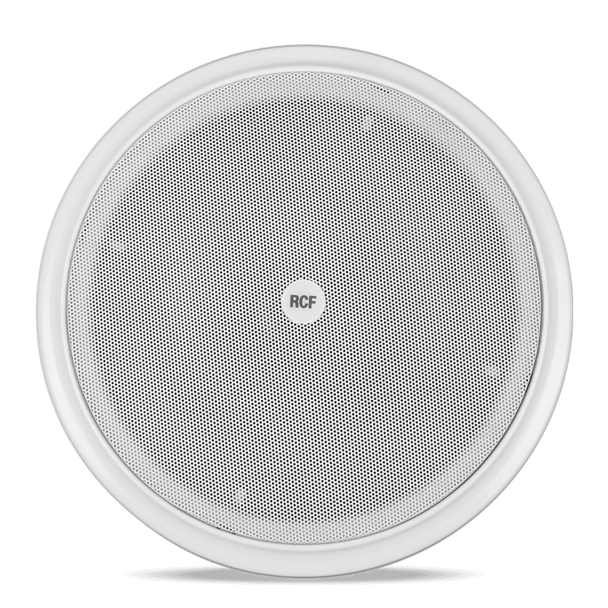

PL 82EN

The PL 82EN is a two-way ceiling speaker (fire dome type) designed for recessed installation in ceilings or panels. It incorporates a flameproof steel back-can (fire dome) that helps protect the speaker and the cable junctions during fire or high temperature scenarios. The unit is particularly well suited for voice alarm / emergency message broadcasting, thanks to its high intelligibility and ability to maintain operation under heat stress. The internal components (wiring and terminals) are made from flameproof materials, and a thermal fuse protects the circuit if internal temperatures become too high.

 Key Features

• 8″ coaxial woofer paired with a 0.75″ dome tweeter

• Selectable power taps on 100 V line: 20 W / 10 W / 5 W

• Sensitivity of 94 dB

• Max SPL at 1 m: 106 dB

• Frequency response (–10 dB): 130 Hz – 20,000 Hz

• Coverage angle: 160°

• Steel frame, grille, and fire dome back can

• In/out connections via ceramic terminal block

• Thermal fuse protection

• White finish (RAL 9016)

• Complies with EN 54-24 certification, for use in voice alarm systems

• Compact dimensions, with a cut-out diameter of 240 mm
