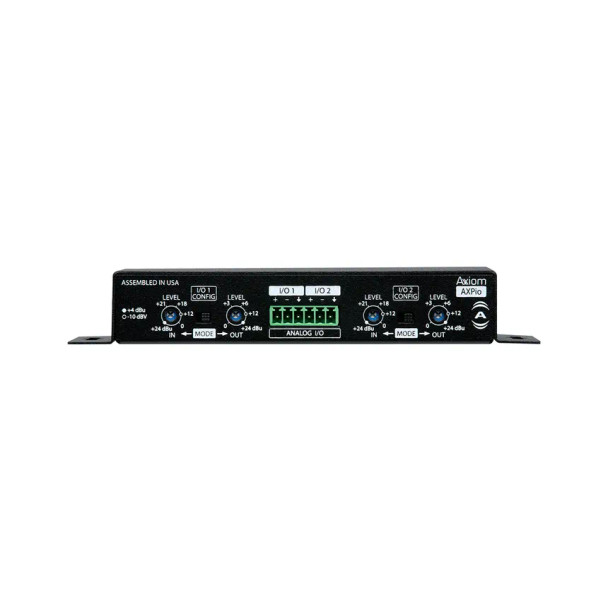

QSC Attero Tech AXPIO 2-Channel Axiom Bus Analog I/O Expander

Attero Tech AXPIO 2-Channel Axiom Bus Analog I/O Expander

Description:
The AXPIO is a 2-channel analog input/output expander designed for use with Axiom wall plates. It extends balanced line-level audio signals over a simple CAT-5/6 connection and integrates seamlessly with installed AV systems.

Key Features:

• Two Flex I/O channels: Configurable as inputs, outputs, or a mix (2×0, 1×1, 0×2).

• Balanced line-level audio: Supports up to +24 dBu for professional-grade audio.

• RS-232 control: Allows integration with AV controllers or networked systems.

• Easy installation: Powers wall plates and transmits audio over a single CAT-5/6 cable.

Typical Use Cases:

• Extending audio from wall-mounted devices to a central mixer or DSP.

• Adding additional analog I/O points in classrooms, boardrooms, worship spaces, retail, or hospitality AV systems.

Specifications:

• Power: +24 VDC @ 100 mA

• Connectors: Two balanced line-level Flex I/O ports (terminal blocks) and an 8P8C Axiom bus port

• Dimensions: ~2″ × 10″ × 5″ (HxWxD)

• Weight: ~0.8 lb (0.4 kg)
