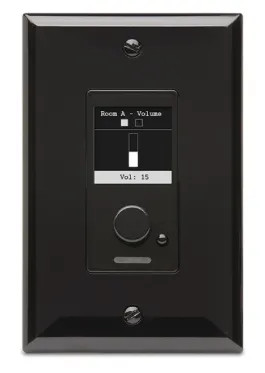

QSC C1-AXON Wall Controller — Single Gang IP Wall Controller (PoE)

QSC C1 Single-Gang IP Wall Controller (PoE)

Description:
The C1 is a compact, single-gang IP-enabled wall controller with Power over Ethernet (PoE). It provides an intuitive interface for controlling AV systems in professional installations. It includes both white and black faceplates for versatile décor options.

Key Features

• IP-based control: Communicates over Ethernet for AV system management.

• PoE powered: Receives power through a single CAT‑5e/CAT‑6 cable; no separate power needed.

• OLED display: Shows menus, status, and control feedback.

• Rotary encoder + pushbutton: Allows easy control of volume, mute, presets, and other functions.

• Assignable LED light bar: Provides visual feedback for zone settings or system status.

• In-wall design: Fits standard single-gang US electrical boxes.

Typical Uses

• Conference rooms, classrooms, retail spaces, and houses of worship.

• Local control of audio or system functions in networked AV installations.

• Integrates with Q-SYS platforms and third-party networked equipment.

Specifications

• Connectivity: Ethernet (100 Mbps), RJ‑45 connector

• Power: PoE (802.3af Class 0)

• Display: 1.5 in high-contrast OLED

• Dimensions: ~4.2″ × 1.74″ × 1.77″ (H×W×D)

• Weight: ~0.25 lb (0.113 kg)
