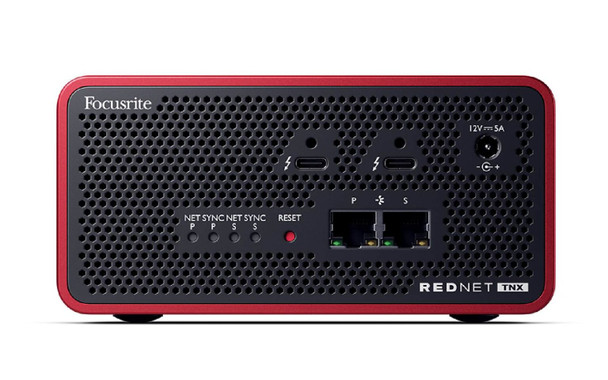

RedNet TNX – Portable Thunderbolt + Dante Audio Interface

Description

The RedNet TNX is a compact Dante‑over‑Thunderbolt interface designed for high-channel-count, low-latency audio workflows. It provides a bridge between your computer (via Thunderbolt) and a Dante audio network, making it ideal for studios, broadcast, post‑production, and immersive audio setups. It supports very high I/O counts, and with a paid upgrade, its capacity can be doubled.

Key Features

• High Channel Count: 128 × 128 I/O at up to 24‑bit / 192 kHz, with the option to expand to 256 × 256 (at 96 kHz) via Dante Ready™

• Connection: 2 × Thunderbolt 3 ports (each supplying 15W)

• Network: 2 × RJ‑45 Ethernet ports for Dante, supporting both switched and redundant configurations

• Standards: AES67 and SMPTE ST 2110 compatible

• Compatibility: Works on Windows and macOS (including Apple Silicon)

• Control: Integrated network interface + control via RedNet Control software
