Description
At‑a‑Glance Features
-
Length: 50 ft (≈15.2 m), ideal for long stage runs or large installations
-

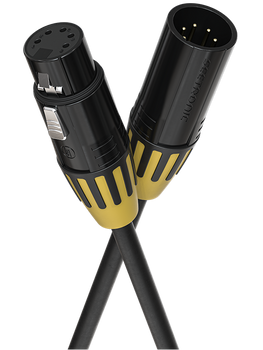

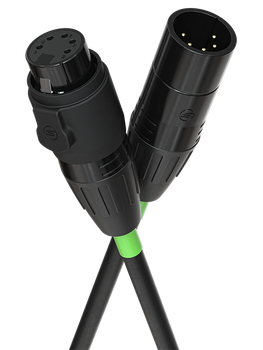

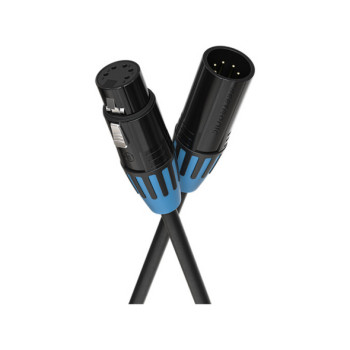

Connectors: Rugged Seetronic SCM55‑BG (male) and SCMF5‑BG (female) XLR 5‑pin, color‑coded by length to simplify cable management
-
Double Shielding: Braided tinned oxygen‑free copper plus aluminum foil, delivering over 89 % shielding effectiveness—greatly minimizes EMI interference
-
Insulation & Jacket: Low-dielectric LDPE insulation (1.8 mm OD) and flexible PVC jacket (≈6 mm OD), rated −20 °C to +70 °C
-
Signal Specs: Engineered for 110 Ω DMX‑512; capacitance 50 pF/m conductor-to-conductor, 122 pF/m conductor‑to‑shield; withstands up to 0.5 kV
