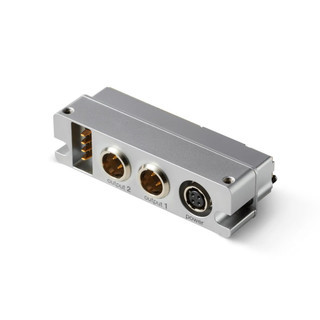

Shure Dual TA3 Back Plate for ADX5D

The Shure ADX5BP‑TA3 is a TA3 backplate designed to attach to the Axient Digital ADX5D dual‑channel portable wireless receiver to provide standalone connectivity for professional broadcast applications. It enables the ADX5D receiver to be used with cameras, multi‑coupler devices, audio bags, battery distribution systems (BDS), or battery sleds where a slot‑mount isn’t available. The backplate adds reliable power and audio output connections, and installs easily onto the receiver with captive Phillips‑head screws. Output channels can be configured for analog or digital AES3 audio depending on system requirements.

Features

• TA3 backplate for the Shure Axient Digital ADX5D dual‑channel wireless receiver

• Two TA3 (mini 3‑pin XLR) analog audio outputs

• Output 1 can be configured as a two‑channel AES3 digital output (when selected, analog Output 2 is disabled)

• One 4‑pin power connector for use with a Shure battery sled

• One 4‑pin locking Hirose power input connector for external power

• Input voltage range from 6 V DC to 18 V DC
