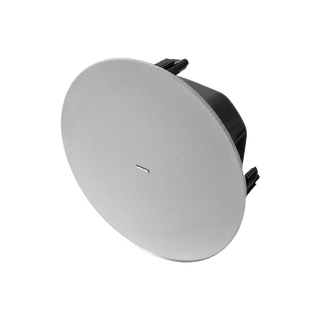

Shure MXP-5W and New Construction Bracket

The Shure MXP-5W-NCB-V is a shallow-depth, passive ceiling-mount loudspeaker designed for conferencing environments and meeting rooms. It delivers clear, intelligible audio suitable for speech and program audio reproduction, and the included new construction bracket facilitates installation in unfinished ceilings. The speaker integrates easily into AV systems and offers flexibility for various mounting scenarios.

Key Features

• Dual-driver architecture for full-fidelity, premium audio reproduction and enhanced speech intelligibility.

• 4-inch main driver with a large, well-vented motor for increased power handling.

• 1-inch tweeter with neodymium magnet and heatsink fins for high efficiency.

• Compact, shallow-depth design (approximately 2.5" mounting depth) suitable for retrofit applications or ceilings with limited space.

• Front faceplate switch to select between 70/100 V transformer operation or passive 8-ohm mode.

• Identical voicing to the MXP-6 Pendant Loudspeaker to maintain consistent tonality in blended installations.

• Up to eight MXP-5 units can be driven by a Shure MXN-AMP PoE+ multichannel amplifier in 70/100 V mode.
