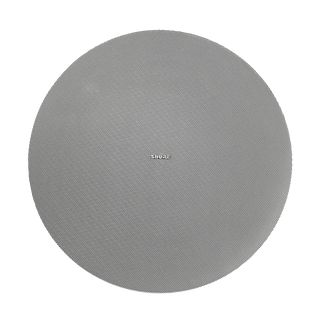

Shure MXP-5W and Tilebridge

The Shure MXP-5W-TB-V is a shallow-depth passive ceiling-mount loudspeaker bundle that includes the MXP-5 ceiling loudspeaker and a tile bridge for installation in drop ceilings. It is designed for conferencing and meeting spaces to deliver clear, intelligible audio and easy installation in retrofit or new applications. The loudspeaker can operate in constant-voltage or low-impedance modes and is paintable to match room décor.

Key Features
• Dual-driver architecture for full-fidelity audio reproduction and optimized speech intelligibility.
• 4" woofer with large, well-vented motor for increased power handling; 1" tweeter with neodymium magnet and heatsink fins for high efficiency.
• Compact design with 2.5" depth suitable for retrofits in existing ceilings.
• Front faceplate switch for quick adjustment between 70/100 V transformer and 8-ohm operation.
• Identical voicing to MXP-6 pendant loudspeaker for consistent tonality in mixed installations.
• Up to eight MXP-5 units can be used with the MXN-A
