Description

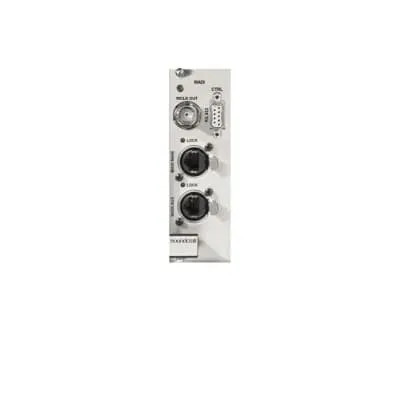

Soundcraft RS2409SP – Cat5 MADI Link Card
Purpose:
Enables digital audio transmission over Cat5/6 between Vi Series consoles and stageboxes or remote I/O racks.
Channels:
-
64 total: 32 inputs + 32 outputs
Connectivity:
-
Dual RJ45 EtherCON ports for redundancy
-
Supports automatic failover in case one cable fails
Maximum Cable Distance:
-
Up to 120 m (≈394 ft) with approved Cat5/6
Form Factor:
-
D21m double-width card (occupies two rack slots)
Compatibility:
-
Vi5000/7000, Vi6 Local Rack
-
Vi1, Vi3000, Vi Stagebox
-
Compact Stagebox
Use Case:
-
Connects digital consoles to stageboxes or remote I/O racks
-
Ideal for live sound, touring, and studio applications where reliable, high-channel digital audio links are needed
