Soundcraft Vi600 System Control Module Upgrade

Part No. 5064931.V

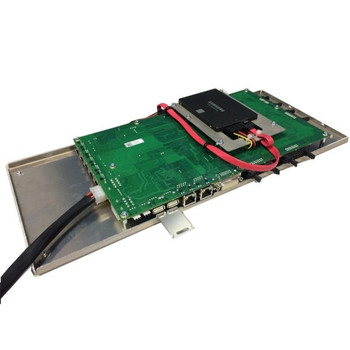

The Soundcraft Vi600 System Control Module is an official upgrade kit for legacy Soundcraft Vi6 digital mixing consoles. It modernizes the console’s internal control electronics by replacing the original “silver box” control module with a newer, higher-performance processor and graphics system capable of running current Soundcraft software.

Description

When installed, the upgrade allows an existing Vi6 console to retain its original physical appearance while internally operating and identifying as a Vi600 on the system menu. The new control module runs a variant of Soundcraft’s V6.x software platform, delivering improved responsiveness, updated graphics, and expanded control features.

Key Features & Enhancements

• Modern Control Hardware: Replaces the original control module with a faster processor and hard-soldered DisplayLink graphics, eliminating the older PCI-based graphics system for improved reliability.

• V6.x Software Support: Enables updated touchscreen graphics and enhanced surface functionality.

• Fast Boot & Improved Performance: Typical startup time of approximately 30 seconds, with smoother surface operation and faster response.

• Enhanced User Features:

  • Updated 3D Vistonics touchscreen graphics, similar to newer Vi000-series consoles

  • Full ViSi Remote support, including EQ, dynamics, and metering

  • Console mirroring for backup or redundant workflows

  • Compatibility with Virtual Vi control and tablet-based operation

System Limitations

Despite the control upgrade, certain limitations remain due to the original Vi6 surface and DSP architecture:

• 128-channel input operation is not enabled, remaining constrained by existing hardware and Local Rack configuration.

• 96 kHz sample-rate operation is not supported.

• Advanced processing features such as BSS DPR901ii Dynamic EQ and vMIX automatic microphone mixing are not available.

Applications

Ideal for touring systems, live venues, theaters, and fixed installations seeking to extend the service life of Vi6 consoles, the Vi600 System Control Module Upgrade provides modern performance and usability improvements without the need to replace the entire mixing system.
