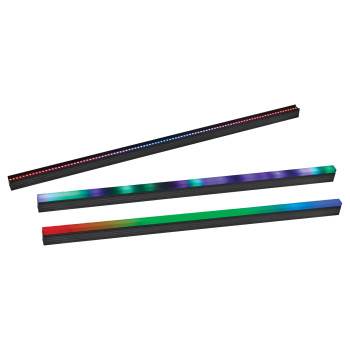

VDO Sceptron XB

The VDO Sceptron XB is a high‑output LED pixel‑batten fixture designed for both lighting and video applications. It belongs to the Sceptron family and is built to deliver professional‑grade performance in a compact format. Key usage contexts include stage lighting, installations, façade lighting, video‑mapping applications, and immersive environments.

Feature Highlights

Here are its main features in greater detail:

• Compact form‑factor and lightweight construction, available in two lengths: 320 mm (~12.6″) and 1000 mm (~39.4″).

  • 320 mm variant: Length 320 mm, width 27 mm, height 37 mm (without diffuser), weight ~0.6 kg.

  • 1000 mm variant: Length 1000 mm, width 27 mm, height 37 mm (without diffuser), weight ~1.6 kg.

• LED source: RGBW LEDs (i.e., red, green, blue plus white) for high quality light output including good white fidelity and saturated colours.

• Pixel‑mapping capability: Each pixel (or segment) can be individually addressed and controlled, allowing the fixture to act as both a lighting element and a video element.

• High optical quality: Features such as Full‑Gamut Pixel Calibration (pixel‑to‑pixel and fixture‑to‑fixture consistency), colour temperature control (approx. 1,800 K up to ~12,850 K) and tint/green‑magenta shift capability.
