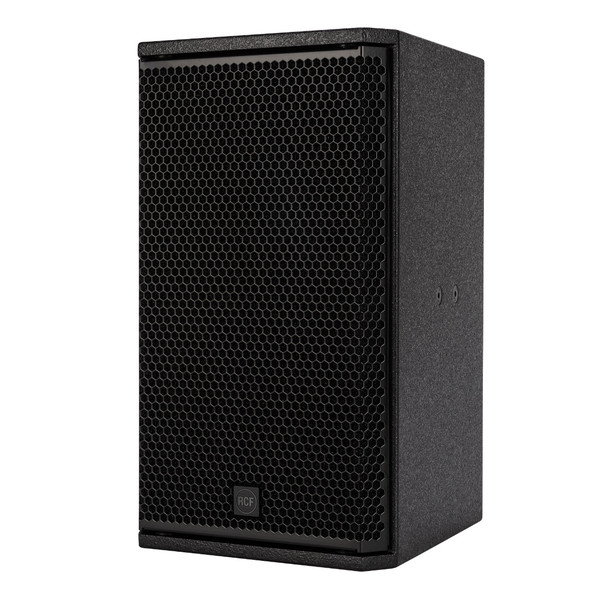

X-08

Key Specifications – RCF X-08 Passive 800W 2-Way 8" Speaker (IP55)

• Power Handling: 200W RMS, 800W peak

• Frequency Response: 60 Hz – 20,000 Hz

• Maximum SPL: 124 dB

• Impedance: 8 ohms

• Coverage Angle: 90° x 70° (constant directivity)

• Transducers:

  • 1 x 8" high-power woofer

  • 1 x 1.4" voice coil compression driver

• Crossover Frequency: 1800 Hz

• Construction: High-quality plywood cabinet with steel front grille

• Mounting Options: Installation points on rear, top, and bottom panels

• Connectors: 4-pole EUROBLOCK connector (audio input and parallel link output)

Description:
The X-08 is a compact, durable 2-way passive speaker designed for professional audio applications. Its high sensitivity and balanced sound make it suitable for near-field installations where clarity and intelligibility are critical. The IP55-rated enclosure provides protection against dust and water, while optional mounting accessories allow flexible wall or ceiling installation.
