ADJ MCTRL660PRO LED display controller

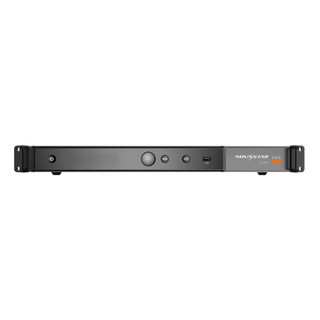

ADJ MCTRL660PRO LED Display Controller

Product Description
The ADJ MCTRL660PRO is a professional-grade LED display controller developed by NovaStar for rental, touring, broadcast, live event, and fixed-installation LED video wall applications. Designed to deliver high-performance video processing with ultra-low latency, it supports advanced color management, pixel-level calibration, and flexible connectivity for large-scale LED displays. A single unit can drive LED screens with resolutions up to 1920×1200 at 60Hz and supports custom screen configurations up to 3840 pixels wide.

Key Features

• Professional LED display controller for live events, concerts, sports venues, broadcast, and permanent installations
• Supports screen loading capacity up to 1920 × 1200 @ 60Hz
• Custom resolutions up to 3840 pixels width and 2560 pixels height
• Inputs:
• 1 × HDMI 1.4a
• 1 × 3G-SDI
• 1 × Single-Link DVI
• Loop Outputs:
• HDMI Loop
• 3G-SDI Loop
• DVI Loop
• Outputs:
• 6 × Gigabit Ethernet ports
• 2 × 10G Optical Fiber ports
• Supports 8-bit, 10-bit, and 12-bit video processing
• High color depth support: RGB 4:4:4 and YCbCr 4:4:4
• Ultra-low latency operation (less than 1 ms)
• Independent RGB Gamma adjustment for enhanced image quality
• Pixel-level brightness and chroma calibration
• Automatic LED screen configuration
• Web-based control and monitoring
• Input signal monitoring
