ADJ VS5 7X4 VS5 7x4 LED Video Wall Bundle, 5.95mm Pixel Pitch

ADJ VS5 7X4 LED Video Wall Bundle (5.95mm Pixel Pitch)

Product Description
The ADJ VS5 7X4 LED Video Wall Bundle is a professional-grade LED display solution designed for live events, stage productions, houses of worship, corporate presentations, exhibitions, and touring applications. The system includes 28 VS5 LED video panels arranged in a 7x4 configuration, delivering a bright, seamless, and high-impact visual display. Featuring a 5.95mm pixel pitch, high refresh rate, and modular design, the bundle provides excellent image clarity, reliable performance, and easy installation for temporary indoor applications.

Key Features

• Complete 7x4 LED video wall system with 28 VS5 LED panels
• 5.95mm pixel pitch for clear and detailed video reproduction
• High-brightness output of 1,000 nits
• 3-in-1 RGB SMD2121 LED technology
• 3840Hz refresh rate for smooth, flicker-free visuals on camera
• Front and rear serviceable design for simplified maintenance
• Four modular LED sections per panel for quick replacement and servicing
• Magnetic alignment system for faster panel installation
• Corner protection system to safeguard panels during transport and setup
• Wide viewing angles: 160° horizontal and 140° vertical
• 14-bit grayscale processing for accurate color reproduction
• 5000:1 contrast ratio for enhanced image depth
• Built-in NovaStar receiving card technology
• PowerLock and DataLock connections for secure signal and power distribution
• Supports HDMI, DVI, VGA, Component, Composite, S-Video, and HD-SDI inputs
• Brightness adjustment from 0–100% in 100 levels
• Modular rigging system suitable for suspended or ground-supported installations
• Designed for temporary indoor event and rental applications

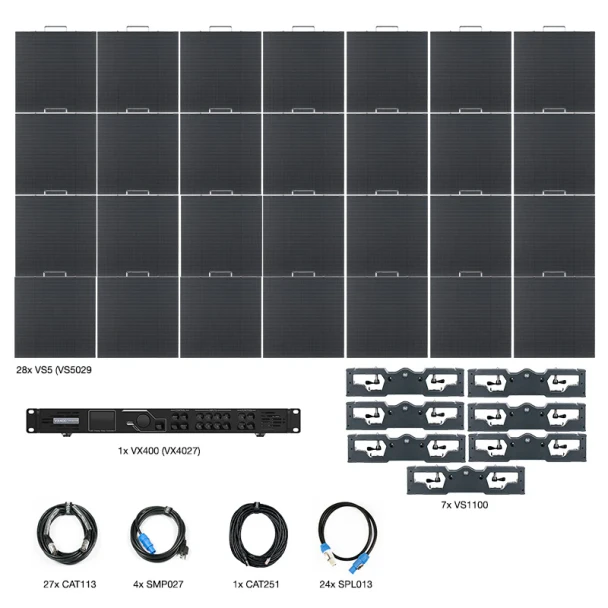

Bundle Includes

• 28 × ADJ VS5 5.95mm LED Video Panels
• 1 × NovaStar VX400 Video Processor
• 7 × Vision Series Rigging Bars
• Panel-to-panel data cables
• Locking power link cables
• Main power cables
• First-run data cable
