ADJ WMS2 2.6mm LED panel

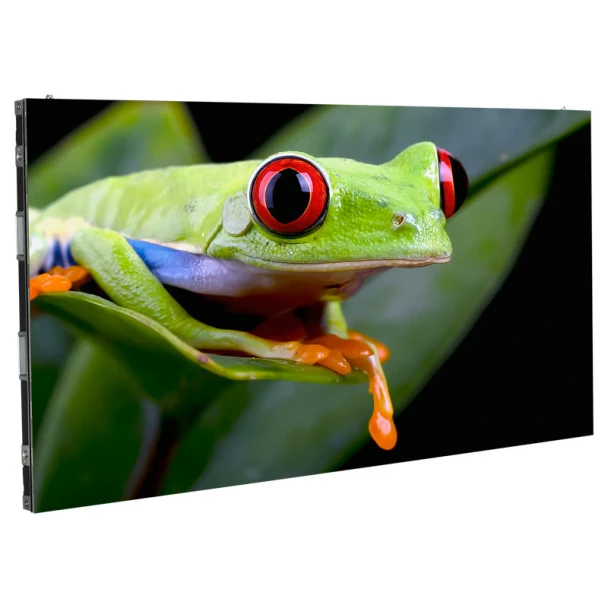

ADJ WMS2 2.6mm LED Video Panel

Product Description
The ADJ WMS2 is a high-resolution indoor LED video panel designed for professional display installations, digital signage, museums, boardrooms, retail environments, houses of worship, and entertainment venues. Featuring a fine 2.6mm pixel pitch and ultra-high pixel density, it delivers sharp, vibrant visuals even at close viewing distances. Its slim, lightweight design supports wall mounting, hanging, or stacking configurations, while front-service access simplifies maintenance and module replacement.

Key Features

• 2.6mm pixel pitch for high-definition image quality
• Ultra-high pixel density of 147,456 pixels/m²
• Brightness rating of 800 NITS for vivid indoor displays
• High refresh rate of 3840Hz for smooth video playback
• Wide viewing angles: 160° horizontal and 140° vertical
• Front-serviceable design for easy maintenance
• Supports horizontal and vertical installation orientations
• Wall-mountable and hangable installation options
• Built-in Novastar A8s-N receiving card
• RGB SMD1515 LED technology for vibrant color reproduction
• Panel resolution of 384 × 192 pixels (horizontal) or 192 × 384 pixels (vertical)
• Modular design with secure locking system for seamless video walls
• Slim cabinet thickness of 33mm (1.3 inches)
• Lightweight cabinet weighing only 9.5 kg (21 lbs)
• Indoor-rated operation (IP20)
• Long LED lifespan of up to 50,000 hours
