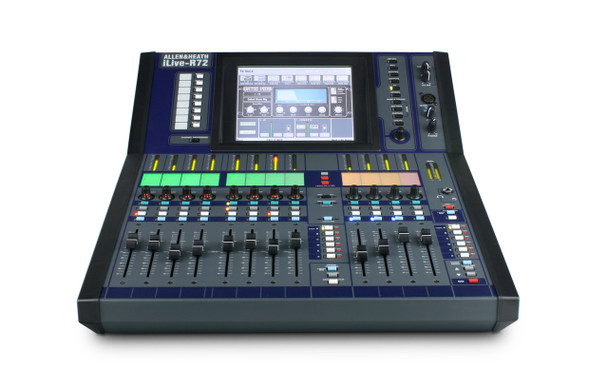

Allen & Heath AH-ILIVE-R72 Control Surface Mixer

The Surface is simply a controller for the MixRack. It also has an audio rack built into it to conveniently provide local inputs and outputs at the mix position. The iLive-R72 provides an ultra-compact rack mountable solution with fixed format I/O. It features a backlit TouchScreen, name and colour virtual write-on strip, banks of motorised faders with independent layers, SoftKeys, built-in headphones, local monitor and talkback.

Features:

• Compact, rack mountable, fixed format Surface
• Does the same job as the larger iLive Surfaces
• 12 faders2 banks, 6 layers = 72 control strips
• All processing control in TouchScreen
• 8 in, 8 out audio
• In = 4x TRS line, 2x phono, 1x SPDIF
• Out = 4x TRS line, 2x phono, 1x SPDIF, monitor TRS
• TB mic can be patched to talkback or channels
• ACE Surface link (audio and control over single CAT5)
• Built in 2 port Ethernet switch
• MIDI port
