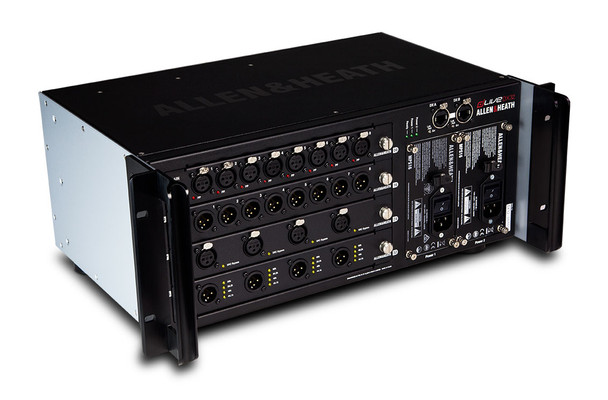

Allen & Heath dLive DX32 Modular Expander – Flexible I/O Expansion Unit for dLive Systems (AH-DLIVE-DX32)

Allen & Heath dLive DX32 Modular Expander (AH-DLIVE-DX32)

Flexible 4-Slot Modular I/O Expander for dLive Systems

The Allen & Heath DX32 (AH-DLIVE-DX32) is a high-performance 96kHz modular I/O expander designed for the dLive digital mixing ecosystem. It provides a flexible and scalable way to expand input and output capacity by allowing users to install different combinations of analog and digital I/O cards in a single rack unit.

With its 4-slot architecture supporting up to 32 channels of I/O, the DX32 is ideal for custom system design in live sound, broadcast, touring, and installed environments where adaptability and expansion are critical.

Key Features

• Modular 4-slot I/O expander chassis
• Supports up to 32 channels of input/output (8 channels per slot)
• Compatible with multiple module types:
  • Mic/line input modules
  • Line output modules
  • AES digital I/O modules
• Operates at 96kHz audio resolution for high-quality signal performance
• Dual Cat5 connectivity for reliable and redundant system linking
• Fully compatible with dLive, Avantis, SQ, and AHM-64 systems
• Can be rack-mounted (4U) or used freestanding in stage setups
• Supports redundant power supply options for mission-critical applications
• Hot-swappable and flexible configuration for touring or fixed installs
• Designed for scalable audio system expansion and custom I/O workflows

Product Overview

The DX32 acts as a configurable building block within Allen & Heath’s digital ecosystem, allowing engineers to design their own I/O layout depending on the needs of each production. Whether used as a stage rack, fixed install expander, or part of a touring system, it delivers reliable connectivity and high-quality audio routing in a compact modular form.
