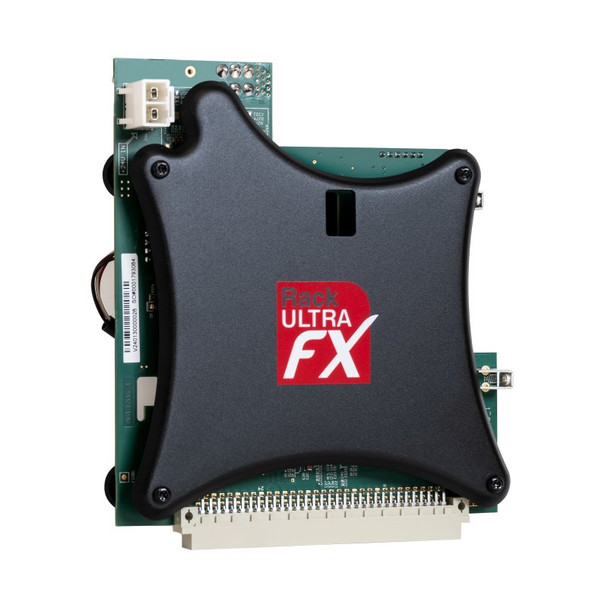

Allen & Heath dLive RackUltra FX Module – Advanced Effects Processing Expansion Card (AH-M-DL-ULTRAFX-RUFX)

Allen & Heath dLive RackUltra FX Module (AH-M-DL-ULTRAFX-RUFX)

Advanced FPGA + ARM Effects Processing Expansion Card for dLive MixRacks

The Allen & Heath AH-M-DL-ULTRAFX-RUFX RackUltra FX Module is a high-performance effects processing expansion card designed for Allen & Heath dLive MixRacks. It adds a dedicated suite of next-generation FX engines powered by a combination of FPGA and ARM processing, significantly expanding onboard creative processing capability without consuming core system resources.

This module is intended for professional live sound, broadcast, and installed audio systems that require high-quality integrated effects such as vocal processing, harmonization, and advanced spatial effects.

Key Features

• Adds 8 RackUltra FX engines to compatible dLive MixRacks
• Powered by FPGA + ARM hybrid processing architecture
• Provides dedicated stereo send and return paths per FX engine
• Includes built-in PEQ and dynamics processing on FX inputs and outputs
• Does not consume mix buses, channels, or existing FX slots
• Supports advanced FX types such as:
  • Reverbs and spatial environments
  • Vocal processing and pitch effects
  • Harmonisers and voice enhancement tools
  • Saturation and distortion effects
• Fully integrated into dLive system workflow and control software
• Designed for high-demand live, broadcast, and touring environments
• Upgradeable module for compatible MixRacks

Product Overview

The AH-M-DL-ULTRAFX-RUFX expands a dLive system’s internal processing power by adding a dedicated FX engine platform separate from standard RackExtra FX resources. This allows engineers to run more complex and modern effects chains without reducing available system processing capacity.
