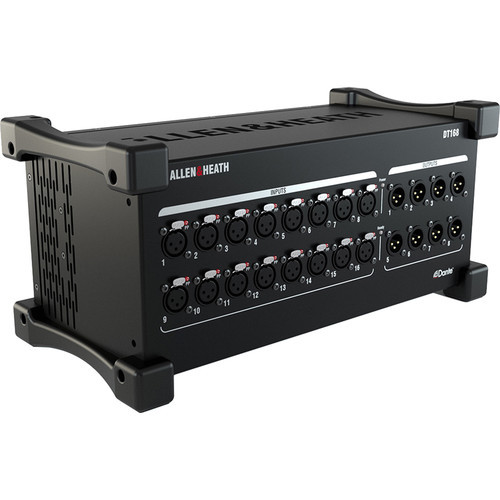

Allen & Heath DT168 Dante Expander – High-Density Network Audio Stagebox Interface (AH-DT168)

Allen & Heath DT168 Dante Expander (AH-DT168)

High-Density 16x8 Dante Stagebox / Network Audio Interface

The Allen & Heath DT168 (AH-DT168) is a rugged high-channel-count Dante stagebox designed for professional live sound, broadcast, and installed audio systems. It provides 16 high-quality mic/line inputs and 8 balanced line outputs, delivering flexible network audio expansion for compatible mixing systems over standard Ethernet.

Built for touring and fixed installations, the DT168 combines Allen & Heath’s low-noise preamps with high-resolution 96kHz digital conversion, making it a reliable solution for distributed audio systems where quality, stability, and scalability are essential.

Key Features

• 16 recallable mic/line inputs with high-quality preamps
• 8 balanced XLR line outputs for flexible routing
• Operates at 48kHz or 96kHz Dante audio networking
• Dual etherCON ports for primary/secondary or switched redundancy mode
• High-quality low-latency network audio transmission over Dante
• Compatible with dLive, Avantis, SQ, Qu, and AHM systems
• Rugged stagebox design with protective bumpers for stage use
• Optional rack mounting kit for 19” installation workflows
• Supports remote preamp control (gain, pad, phantom power) from compatible systems
• AES67 and Dante Domain Manager compatible for advanced network setups

Product Overview

The DT168 acts as a flexible Dante stage interface that allows microphones and line sources to be connected directly into a networked audio system. It simplifies system design by replacing traditional analog multicore cabling with Ethernet-based audio transport while maintaining professional-grade sound quality.
