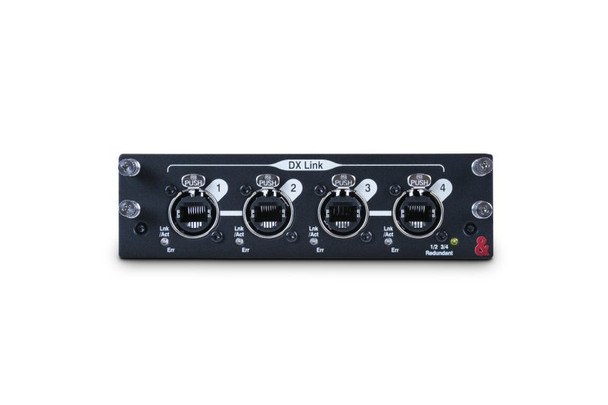

Allen & Heath DX Link Audio Networking Card – System Expansion Interface Module (AH-M-DL-DXLINK-A)

Allen & Heath DX Link Audio Networking Card (AH-M-DL-DXLINK-A)

Dedicated DX Link Interface Module for System Expansion

The Allen & Heath AH-M-DL-DXLINK-A DX Link Audio Networking Card is a system expansion interface module designed for Allen & Heath dLive systems. It provides dedicated DX Link connectivity, enabling high-channel-count, low-latency audio distribution to compatible DX stageboxes and expansion units.

This module is used to extend system I/O capacity and simplify large-scale audio distribution across stage and installation environments.

Key Features

• Dedicated DX Link audio networking interface card
• Designed for dLive system expansion
• Supports high-channel-count audio transport over Cat5e/Cat6
• Low-latency, high-reliability digital audio transmission
• Enables connection to DX series stageboxes and expanders
• Simplifies distributed audio system design
• Supports scalable multi-device system architectures
• Integrated control and clock synchronization with host system
• Suitable for live sound, broadcast, and installed AV systems
• Rugged internal module design for professional environments

Product Overview

The AH-M-DL-DXLINK-A allows a compatible dLive system to communicate with DX series devices through a dedicated high-speed link. It serves as a backbone connection for expanding I/O across multiple stageboxes or remote locations, reducing the need for traditional analog multicore systems.
