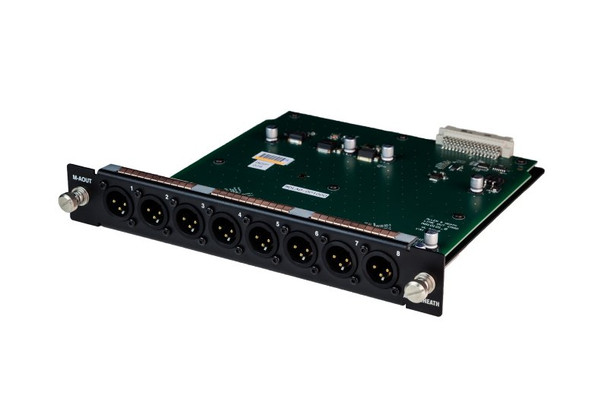

Allen & Heath DX32 8-Channel Analog Output Module – Expansion Card for DX32 System (AH-M-DL-AOUT-A)

Allen & Heath DX32 8-Channel Analog Output Module (AH-M-DL-AOUT-A)

Modular 8-Channel Line Output Card for DX32 Expansion System

The Allen & Heath AH-M-DL-AOUT-A DX32 8-Channel Analog Output Module is a modular expansion card designed for the DX32 I/O expander system. It provides eight high-quality balanced line outputs, allowing flexible routing of audio signals from compatible Allen & Heath digital systems to external devices such as amplifiers, processors, and monitoring systems.

This module is ideal for building customized output configurations in professional live sound, broadcast, and installed audio environments.

Key Features

• 8 balanced line-level XLR outputs
• Designed for the DX32 modular expander chassis
• High-quality analog output stage for professional audio distribution
• Flexible routing from compatible Allen & Heath digital systems
• Low-noise, high-headroom output design
• Supports scalable system configurations using swappable modules
• Suitable for live sound, broadcast, theater, and installation use
• Seamless integration within Allen & Heath digital ecosystems
• Reliable long-term performance for touring and fixed installations
• Allows customized I/O configuration based on system needs

Product Overview

The AH-M-DL-AOUT-A module enables the DX32 system to be configured as an output-focused expansion unit by installing an 8-channel analog output card. Each output delivers clean, balanced line-level audio suitable for feeding amplifiers, powered speakers, recording interfaces, or additional processing equipment.
