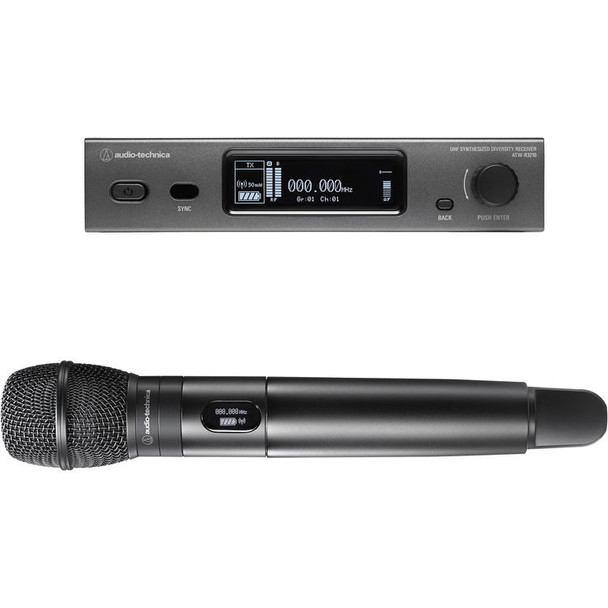

Audio-Technica ATW-3212/C710 3000 Series Wireless Handheld Microphone System with ATW-C710 Capsule (EE1: 530 to 590 MHz)

Audio-Technica ATW-3212/C710 3000 Series Wireless Handheld Microphone System with ATW-C710 Capsule (EE1: 530–590 MHz)

Description

The Audio-Technica ATW-3212/C710 is a fourth-generation 3000 Series UHF wireless handheld microphone system designed for professional live sound, presentations, houses of worship, theaters, and broadcast applications. Operating within the EE1 frequency band (530–590 MHz), the system combines the ATW-R3210 true diversity receiver with the ATW-T3202 handheld transmitter and the ATW-C710 cardioid condenser microphone capsule, delivering detailed vocal reproduction, reliable RF performance, and flexible frequency management in demanding wireless environments.

Features

• Wide 60 MHz UHF tuning bandwidth (530–590 MHz EE1 band)
• True Diversity receiver technology for stable signal reception and reduced dropouts
• ATW-C710 cardioid condenser capsule for clear, detailed vocal reproduction
• Frequency scan function for quick channel selection
• IR synchronization between transmitter and receiver for fast setup
• Multifunction transmitter button for instant switching to a backup frequency
• Auto Squelch system to optimize operating range and minimize interference
• OLED displays on both transmitter and receiver for clear monitoring of settings and status
• Dual-mode receiver display with standard and performance metering views
• Interchangeable capsule design with industry-standard threading for compatibility with select Audio-Technica and third-party capsules
• Selectable RF output power (10 mW / 30 mW)
• Operating range up to 100 m (330 ft) under typical conditions
• Up to 40 simultaneous channels per frequency band (depending on RF environment)
• Balanced XLR and unbalanced audio outputs
• Ground-lift switch to help eliminate ground-loop hum
• Detachable antennas with bias power support for active antenna systems
• Rugged metal transmitter construction for professional use
• Powered by two AA batteries with up to 9.5 hours of operation (battery type dependent)
• Compatible with Audio-Technica smart charging solutions (optional)

System Components

• ATW-R3210 True Diversity UHF Receiver
• ATW-T3202 Handheld Wireless Transmitter
• ATW-C710 Cardioid Condenser Microphone Capsule
• Detachable Antennas
