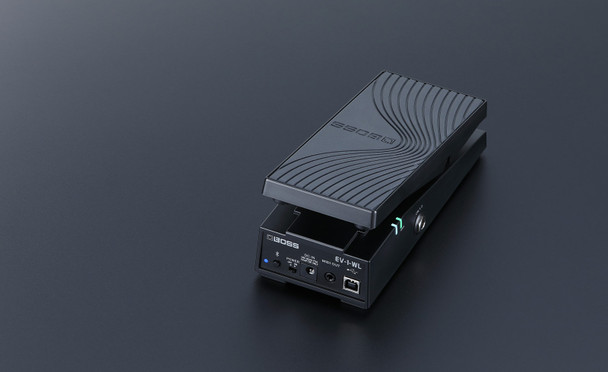

BOSS EV-1-WL Wireless MIDI Expression Pedal with Bluetooth MIDI, USB, TRS MIDI and Customizable Controls (EV-1-WL)

BOSS EV-1-WL Wireless MIDI Expression Pedal with Bluetooth MIDI, USB, TRS MIDI and Customizable Controls (EV-1-WL)

The BOSS EV-1-WL is a versatile wireless MIDI expression pedal designed to provide hands-free control over MIDI-compatible music equipment, software, and mobile applications. It offers three connection options—Bluetooth MIDI, USB, and TRS MIDI—allowing you to use wireless or wired control depending on your setup.

The EV-1-WL provides wireless MIDI control for compatible BOSS equipment such as the EURUS GS-1, Waza-Air, and Katana-Air, as well as other Bluetooth MIDI devices. Its USB connection provides plug-and-play MIDI control with macOS and Windows computers, while the TRS MIDI output allows connection to MIDI pedals, multi-effects processors, keyboards, drum machines, and other MIDI equipment.

A built-in toe switch provides additional control, while the external control input supports up to two BOSS FS-series footswitches. Bluetooth, USB, and TRS MIDI outputs can operate simultaneously with independent MIDI CC assignments for each connection.

The EV-1-WL can be customized through the dedicated editor app for iOS and Android devices. Users can assign MIDI CC numbers, adjust the expression pedal response curve, configure footswitch operation, and select momentary or latching modes.

Key Features:

• Wireless MIDI expression pedal with Bluetooth MIDI connectivity
• Three connection options: Bluetooth MIDI, USB, and TRS MIDI
• Bluetooth, USB, and TRS MIDI outputs can operate simultaneously
• Independent MIDI CC settings for each output
• Compatible with BOSS EURUS GS-1, Waza-Air, Katana-Air, and other Bluetooth MIDI devices
• Wireless communication with supported Roland WM-1 and WM-1D wireless MIDI adapters
• Class-compliant USB MIDI connection for macOS and Windows computers
• No additional USB drivers required
• TRS MIDI output for compatible MIDI devices
• Supports TRS-to-TRS MIDI connections
• Can connect to standard 5-pin MIDI equipment using an appropriate MIDI cable
• Built-in toe switch for additional MIDI control
• Supports up to two external BOSS FS-series footswitches
• Dedicated iOS and Android editor app
• Customizable MIDI CC assignments
• MIDI channels 1–16
• Expression pedal response curves include Normal, Slow 1, Slow 2, and Fast
• Footswitch modes can be set to momentary or latching
• Suitable for controlling MIDI effects, multi-effects processors, keyboards, drum machines, virtual instruments, and music software
• Powered by two AA batteries or a BOSS PSA-series AC adapter
