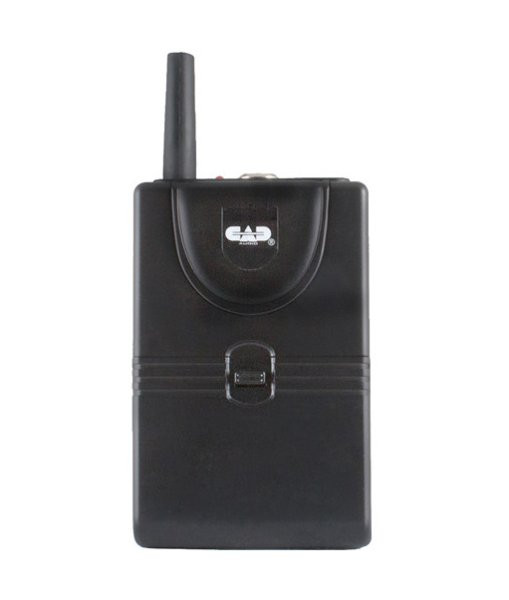

CAD Audio TXBGXLVH Bodypack Transmitter for GXLV Wireless Systems, Frequency H (AMS-TXBGXLVH-1858)

CAD Audio TXBGXLVH VHF Bodypack Transmitter for GXLV Wireless Systems, Frequency H, 4-Pin Connector, Scan-Link Infrared, and 9V Battery Powered (AMS-TXBGXLVH-1858)

Product Description:
The CAD Audio TXBGXLVH VHF Bodypack Transmitter is a dependable wireless transmitter designed for use with CAD Audio GXLV wireless receiver systems. Ideal for vocalists, presenters, and musicians, this compact bodypack unit provides reliable VHF audio transmission for compatible microphones and instruments through its 4-pin TB4M-type connector.

The transmitter features a SoftTouch control switch for convenient power and mute operation, allowing users to quickly manage their wireless connection during performances or presentations. A tri-color LED indicator provides real-time monitoring of audio activity and battery status, while the built-in infrared node enables Scan-Link functionality for simplified wireless system setup.

Designed for professional applications, the TXBGXLVH delivers clear audio performance with a wide frequency response, high dynamic range, and stable 10 mW RF output. It operates on a 9V alkaline or rechargeable battery, providing more than 10 hours of continuous use for live events, rehearsals, and installations.

Key Features:

• VHF bodypack transmitter designed for CAD Audio GXLV wireless systems
• Compatible with RXGXLV wireless receiver
• Frequency H operation for dependable wireless transmission
• 4-pin TB4M-type connector for compatible microphones and instrument cables
• SoftTouch power switch with on/off and mute/unmute functions
• Tri-color LED indicator for audio and battery monitoring
• Infrared node with Scan-Link operation for easy system synchronization
• Compact bodypack design for hands-free wireless applications
• Supports microphone and instrument inputs
• Powered by 9V alkaline or rechargeable battery

Specifications:

• Wireless Type: VHF
• Frequency: H
• Frequency Response: 50 Hz – 18 kHz
• Dynamic Range: >100 dBA
• Maximum Input Level:
  • Microphone Input: -6 dBV
  • Instrument Input: +10 dBV
• RF Output Power: 10 mW
• Connector Type: 4-pin TB4M-type
• Power Requirements: 9V alkaline or rechargeable battery
• Battery Life: More than 10 hours (alkaline battery)
