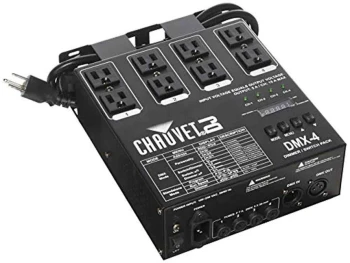

Chauvet DJ DMX-4 4-Channel Dimmer / Relay Pack

Chauvet DJ DMX-4 4-Channel Dimmer / Relay Pack

Product Description
The Chauvet DJ DMX-4 is a professional 4-channel dimmer and relay pack designed to provide DMX control for lighting fixtures that do not have built-in DMX capability. It allows users to switch or dim connected fixtures independently, making it ideal for stage productions, DJ setups, theaters, houses of worship, and event venues. The unit is optimized for use with LED fixtures and includes built-in circuitry to help prevent ghosting and flickering. With flexible channel configuration, automated programs, and standalone operation, the DMX-4 offers reliable and versatile lighting control for a wide range of applications.

Features

• 4-channel dimmer and relay pack
• Supports DMX-controlled dimming and switching of non-DMX fixtures
• Up to 5A per channel, 15A maximum total load
• Each channel can be individually configured as a dimmer or relay (switch)
• Adjustable DMX addressing for each channel
• Four duplex outlets for controlling up to eight fixtures simultaneously
• 16 built-in user-configurable chase programs
• Standalone operation without a DMX controller
• Automatic detection of DMX signal for seamless operation
• Built-in phantom load circuitry reduces LED ghosting and flickering
• Separate LED indicators for monitoring channel activity
• Adjustable chase speed and dimming levels
• Supports 1, 2, or 4 DMX channel operation modes
• 3-pin XLR DMX input and output connections
• Auto-ranging power supply (100–240V AC, 50/60Hz)
• Rugged, compact design suitable for mobile and permanent installations
• Easy-to-use digital display and onboard controls
