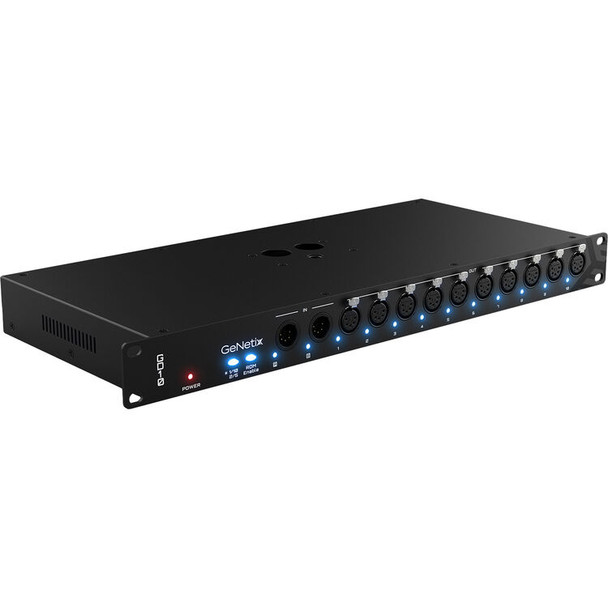

Chauvet Professional GeNetix GD10 (GENETIXGD10) – 10-Port DMX Splitter

Product Description
The GeNetix GD10 is a professional-grade, rack-mountable 10-port DMX splitter designed for live productions, theaters, touring applications, and permanent installations. It provides reliable DMX signal distribution with RDM support, ensuring stable communication across multiple lighting fixtures and control devices. The unit features flexible operating modes, allowing either a single DMX input to be distributed to ten outputs or two separate DMX inputs to be distributed across five outputs each. Its rugged construction, opto-isolated outputs, and PowerCON TRUE1 power connection make it ideal for demanding professional environments.

Features

• 10-port DMX splitter with RDM (Remote Device Management) support
• Two DMX input ports and ten opto-isolated DMX output ports
• Selectable operating modes:
• 1 Input → 10 Outputs
• 2 Inputs → 5 Outputs each
• RDM E1.20 compliant
• Dedicated RDM Enable/Disable function for signal management
• DMX signal retiming for improved signal integrity
• 19-inch, 1U rack-mountable design
• 5-pin XLR DMX input and output connections
• PowerCON TRUE1 mains power input
• Supports 110–240 VAC operation
• Rugged metal construction for touring and installation use
• M12 threaded insert for secure clamp mounting
• Status indicators for monitoring port activity
• Suitable for both permanent installations and live event applications
• Low power consumption (approximately 6.5W)

Specifications

• DMX Inputs: 2 × 5-pin XLR
• DMX Outputs: 10 × 5-pin XLR (opto-isolated)
• Operating Modes: 1×10 or 2×5 distribution
• RDM Support: Yes
