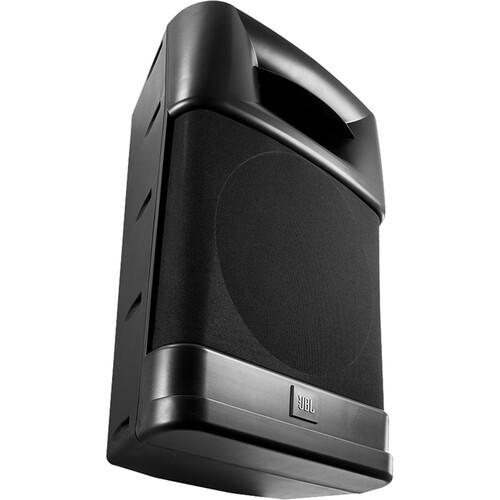

JBL 9310 2-Way 350W Cinema Surround Loudspeaker

JBL 9310 2-Way 350W Cinema Surround Loudspeaker

Description
The JBL 9310 is a professional high-power cinema surround loudspeaker engineered for modern digital theaters and immersive audio environments. Featuring a 2-way passive design with a 10-inch long-excursion woofer and a 1-inch high-frequency compression driver, it delivers clear, dynamic surround sound with excellent speech intelligibility and wide coverage. JBL's advanced Image Control Technology and Wave Shaping Vane provide precise sound dispersion, ensuring consistent audio performance throughout the auditorium.

Features

• 2-way passive cinema surround loudspeaker
• 350W continuous power handling
• 10-inch high-power, long-throw woofer
• 1-inch high-frequency compression driver
• JBL Image Control Technology for accurate sound coverage
• Wave Shaping Vane for optimized acoustic distribution
• Asymmetrical 110° horizontal × 60° vertical coverage pattern
• High sensitivity rating of 99 dB
• Maximum SPL of 124 dB continuous, 130 dB peak
• Extended frequency response from 50 Hz to 25 kHz
• 8-ohm nominal impedance
• Precision crossover network at 2.6 kHz
• Three integrated 15° mounting planes for flexible installation
• Top-mounted input terminals for easy access
• Lightweight, rigid molded enclosure for long-term durability
• Designed specifically for modern cinema surround applications
• Studio-quality performance with controlled directivity
