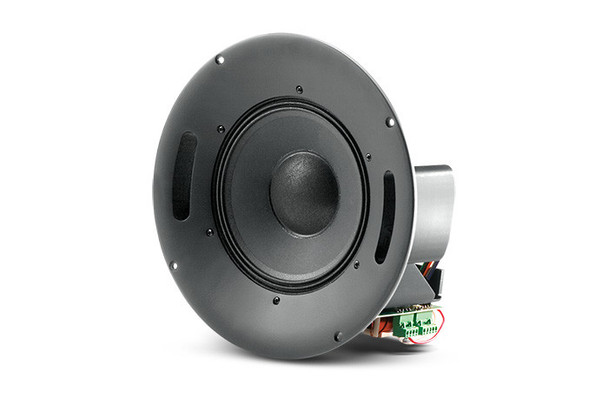

JBL CONTROL 328CT - 8" CEILING COAX W/60W X-FORMER

JBL CONTROL 328CT – 8" Coaxial Ceiling Loudspeaker with 70V/100V Transformer

Product Description
The JBL Control 328CT is a premium 8-inch coaxial ceiling loudspeaker designed for high-performance commercial audio installations. Engineered with a coaxial point-source design, it delivers clear, consistent sound coverage for speech and music applications in retail stores, hospitality venues, corporate facilities, educational institutions, and other distributed audio environments. The integrated 70V/100V multi-tap transformer provides flexible system integration, while the high-sensitivity design ensures excellent output and intelligibility across large spaces.

Features

• 8-inch (200 mm) woofer with Kevlar-reinforced cone for durability and accurate low-frequency reproduction.
• 1-inch exit high-frequency compression driver for detailed, intelligible sound.
• Integrated 70V/100V multi-tap transformer with power taps up to 68W.
• Wide 120° conical coverage pattern for uniform sound distribution.
• High sensitivity and high SPL capability for demanding commercial environments.
• Advanced crossover network for smooth frequency response and consistent coverage.
• Frequency response: 60 Hz – 16 kHz (±3 dB).
• Extended frequency range: 45 Hz – 18 kHz (-10 dB).
• Maximum SPL: 118 dB.
• 8-ohm direct operation capability.
• Contemporary low-profile grille design suitable for modern interiors.
• Optional backbox and grille accessories available for various installation requirements.
