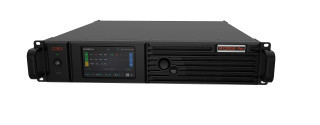

Novastar MX20;All-In-One LED controller

The Novastar MX20 is an all-in-one LED display controller belonging to NovaStar’s COEX series. It combines video processing and video control in a single device, simplifying system architecture and reducing the need for multiple external units. The MX20 interfaces with LED video systems and LED receiving cards to drive high-resolution LED screens with precision. It is designed for professional LED display installations, broadcast environments, virtual production, events, and other applications requiring reliable, high-quality image output.

Key Features

Unified Processing and Control

• Combines video input processing and LED display control within a single chassis, eliminating the need for separate processing and sending devices.

Input and Output Connectivity

• Multiple video input interfaces including 2× HDMI 1.3 and 1× 3G-SDI, allowing connection to diverse video sources.

• Outputs include 6× Gigabit Ethernet ports and 2× 10G optical fiber ports for high-capacity data transmission to LED receiving cards.

• Additional support for SPDIF digital audio output.

High-Resolution Support

• Capable of driving up to approximately 3.9 million pixels in a single controller.
