ADJ NOVAPRO UHD JR all-in-one controller

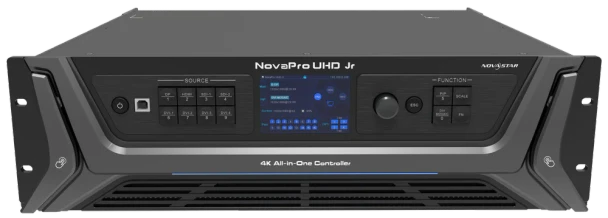

ADJ NOVAPRO UHD JR All-in-One Controller

Description
The ADJ NOVAPRO UHD JR is a professional all-in-one LED display controller developed by NovaStar and distributed by ADJ. It combines advanced video processing, LED sending card functionality, and screen management into a single rack-mountable unit. Designed for live events, touring productions, conference venues, broadcast environments, exhibition installations, and fine-pitch LED displays, it supports ultra-high-definition video processing with powerful scaling, image enhancement, and multi-screen control capabilities.

Features

• 4K × 2K @ 60Hz ultra-high-definition input and output processing
• Supports up to 8 simultaneous video inputs
• Integrated video processor and LED sending controller
• 16 Neutrik EtherCON Ethernet output ports
• 4 optical fiber output ports
• Maximum loading capacity of up to 8.3 million pixels
• Input connections include:
• 1 × DisplayPort 1.2
• 4 × DVI
• 1 × HDMI 2.0 with loop output
• 2 × 12G-SDI with loop outputs
• HDR (High Dynamic Range) image processing
• 3D image output support
• Low-latency processing with near zero-frame transmission capability
• DVI Mosaic function supporting up to 4 DVI sources as a single input
• Multiple image scaling modes:
• Auto Fit
• Pixel-to-Pixel
• Custom Scaling
• Background image and solid-color background support
• Screen capture function for creating custom backgrounds
• Decimal refresh rate adjustment
• Supports cascading of up to 4 controllers for larger LED displays
