Universal directivity

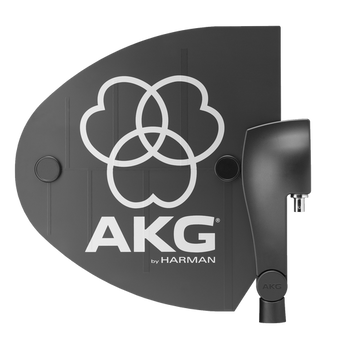

The SRA2 EW is a passive directional wide-band UHF antenna that can be used as a transmitting or receiving antenna for wireless microphones and in-ear monitoring systems. It operates in a frequency range from 470MHz to 952MHz and provides a covering angle of 70° and an antenna gain of 6dB. The SRA2 EW is built in a passive technology and requires no powering. It works for short cable lengths up to 10m and supports a professional BNC connector. The antenna has waterproof construction and can be used for indoor and outdoor applications. With the included universal thread adapter, it can be mounted on floor stands with 3/8" or 5/8" screws.

General Specifications

Switching bandwidth (from/to)

470 to 952 MHz

Antenna gain

4.5 dBi

Covering angle

70 Grad

Dimensions

Length

240 mm

Height

230 mm

Width

26 mm

Net Weight

250 g

Antenna Output

Amount

1

Type

BNC

Gender

Female

Note

RF output (50 Ohms)

Recommended load impedance

50 Ohms

Design

Body

plastic

Finish

black
