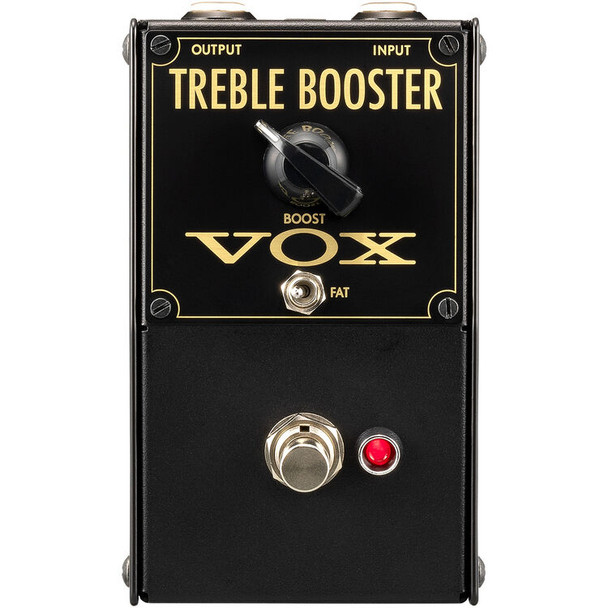

Vox VTB-1 Treble Booster Pedal (VTB1)

VOX VTB-1 Treble Booster Pedal (VTB-1)

Product Description
The VOX VTB-1 Treble Booster is a vintage-inspired boost pedal designed to recreate the iconic British treble booster tones that helped define classic rock recordings. Built around a carefully selected silicon transistor and a precision-biased single-transistor circuit, it delivers the harmonic richness, touch sensitivity, and dynamic response of vintage treble boosters while providing the stability, consistency, and low-noise performance demanded by modern players. Ideal for pushing tube amplifiers into smooth, singing overdrive, the VTB-1 offers authentic vintage character in a compact and road-ready format.

Features

• Faithfully recreates classic British treble booster tones
• Single-transistor gain stage for authentic response and clarity
• Silicon circuit design engineered to emulate vintage germanium-style behavior
• Precision biasing for an expanded sweet spot and enhanced touch sensitivity
• Hand-selected Silver Can BC109 transistor
• Fat Switch expands the boosted frequency range for thicker tones
• Exceptional low-noise operation
• Excellent volume-knob cleanup and dynamic response
• True bypass switching
• Compact and rugged vintage-style enclosure
• Compatible with standard 9V pedalboard power supplies
• Can also operate on a 9V battery
• Designed to pair exceptionally well with VOX AC-series amplifiers
• Delivers harmonically rich overdrive and expressive edge-of-breakup tones

Specifications

• Effect Type: Treble Booster / Boost
• Controls: Boost, Fat Switch, On/Bypass Footswitch
• Input Impedance: 68 kΩ
• Output Impedance: 1 kΩ
• Power Supply: 9V DC (center-negative) or 9V battery
• Current Consumption: 1.8 mA
• Battery Life: Approx. 270 hours (alkaline battery)
• Dimensions (W × D × H): 74 × 123 × 58 mm
• Weight: 404 g (excluding battery)
• Bypass Type: True Bypass
