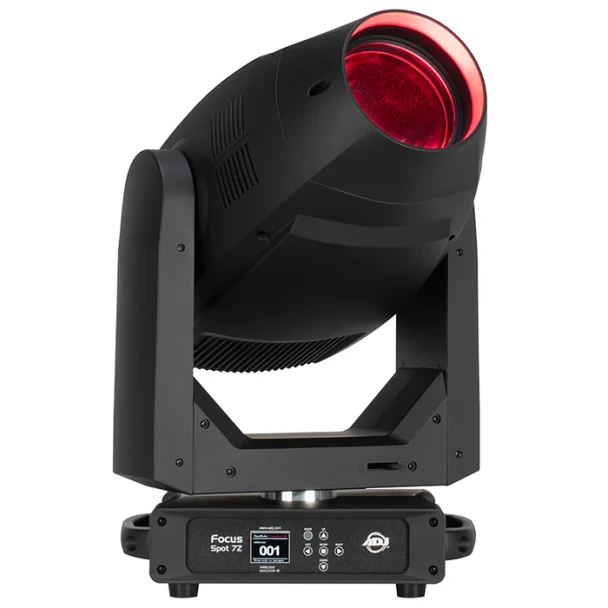

ADJ Focus Spot 7Z LED Moving Head Spot & Wash Fixture

Description

The ADJ Focus Spot 7Z is a high-performance moving head luminaire engineered for professional productions that demand exceptional brightness, precision, and versatility. Powered by a potent 420W white LED engine delivering an impressive 20,000 lumens, it combines spot and wash capabilities in a single fixture. Featuring full CMY and CTO color mixing, dual rotating GOBO wheels, animation wheel, rotating prisms, dual frost filters, and a wide motorized zoom range of 6°–48°, the Focus Spot 7Z provides lighting designers with extensive creative possibilities for concerts, theaters, broadcast studios, houses of worship, and large-scale event productions.

Key Features

• Powerful 420W white LED engine with 20,000-lumen output
• Wide motorized zoom range from 6° to 48°
• Full CMY color mixing system with variable CTO (2700K–8000K)
• Color wheel with 7 dichroic color slots, including High CRI and CTB filters
• Dual rotating and indexable GOBO wheels with 7 interchangeable glass GOBOs each
• Rotatable and indexable animation wheel for dynamic visual effects
• Dual rotating prisms:
  • 4-facet circular prism
  • 6-facet linear prism
• Two frost filters for soft-edge projections and wash effects
• Motorized focus with fine focus adjustment
• Motorized iris for beam shaping and effect enhancement
• Electronic dimming and strobe effects (1–20Hz)
• Supports DMX512, Art-Net, and sACN control protocols
• Compatible with Aria X2 Wireless Management and DMX systems
• RDM (Remote Device Management) support
• Full-color reversible LCD display with touch control interface
• Adjustable fan speeds, dimming modes, and LED refresh rates
• Locking power and network connections for professional installations
• Compact footprint and lightweight design for its performance class
