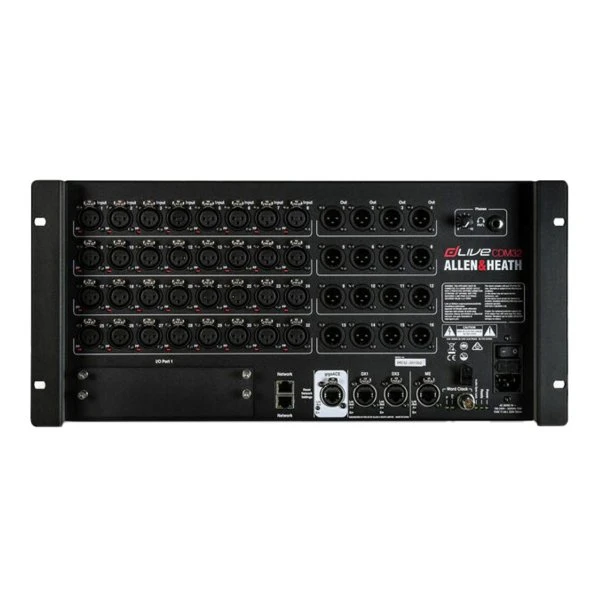

Allen & Heath dLive CDM32 RUFX MixRack Stage Box (AH-DLIVE-CDM32-RUFX)

The Allen & Heath AH-DLIVE-CDM32-RUFX is a compact C-Class dLive MixRack designed to serve as the central processing engine of a modular digital mixing system. It functions as a high-performance stage box and mix engine, providing the core audio processing, routing, and networking capabilities for dLive control surfaces or software-based control setups.

At its core, the CDM32 RUFX features Allen & Heath’s XCVI FPGA processing engine, delivering ultra-low latency, high-resolution 96kHz audio, and a flexible routing architecture suitable for professional live sound environments. It includes high-quality, recallable microphone preamps and integrated digital networking options, allowing it to interface seamlessly with expanders, stage boxes, and external systems.

The “RUFX” configuration typically indicates a factory-equipped RackUltra FX processing card, providing additional onboard effects processing power without consuming system resources. This makes it suitable for demanding applications such as touring, houses of worship, theaters, and live production where both channel count and built-in processing are essential.

Key Features:

• C-Class dLive MixRack with XCVI 96kHz FPGA processing engine
• 32 mic/line inputs and 16 line outputs (CDM32 configuration)
• Acts as the central processing core of the dLive system
• Ultra-low latency audio processing (approximately 0.7 ms system latency)
• Fully recallable high-quality mic preamps for consistent performance
• Integrated RackUltra FX processing (RUFX version) for onboard effects
• 64-bus configurable architecture for flexible routing and mixing
• Supports expansion via digital I/O and networking cards
• Designed for modular live sound systems, touring, and installed audio setups
• Compatible with dLive control surfaces and remote software control
