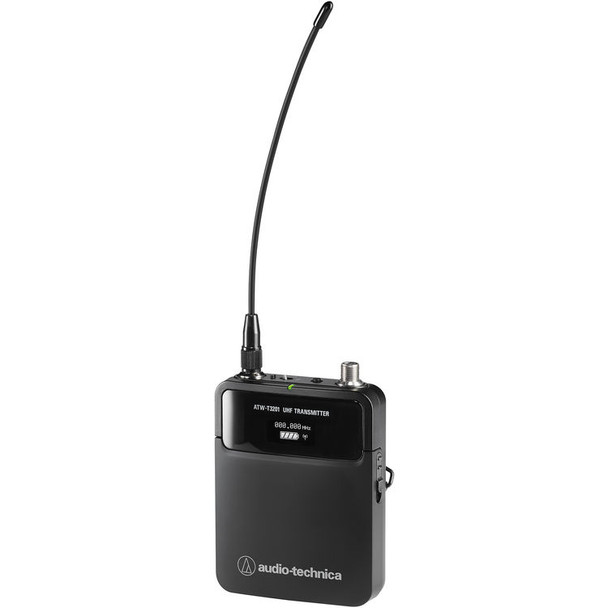

Audio-Technica ATW-T3201AEE1 3000 Series Bodypack Transmitter (EE1: 530 to 590 MHz)

Audio-Technica ATW-T3201 3000 Series Bodypack Transmitter (EE1: 530–590 MHz)

Description

The Audio-Technica ATW-T3201 is a fourth-generation 3000 Series UHF wireless bodypack transmitter designed for professional live sound, presentation, theater, worship, education, and broadcast applications. Operating within the EE1 frequency band (530–590 MHz), it is compatible with Audio-Technica 3000 Series receivers and supports lavalier microphones, headset microphones, and instrument connections through its locking 4-pin cH-style connector. Its rugged metal construction, wide tuning bandwidth, and advanced frequency management provide reliable wireless performance in demanding RF environments.

Features

• Wide 60 MHz UHF tuning range (530–590 MHz)
• Up to 2,400 selectable frequencies for flexible channel coordination
• Compatible with Audio-Technica 3000 Series wireless receivers
• Locking 4-pin cH-style (Hirose-type) input connector
• Supports lavalier, headset, instrument, and line-level sources
• Adjustable input gain from -10 dB to +20 dB in 2 dB increments
• Selectable RF output power: 10 mW or 30 mW
• Bright OLED display with frequency, battery status, mute status, and RF settings
• Infrared (IR) synchronization with compatible receivers
• Programmable multifunction button for quick access to backup frequencies and user functions
• Defeatable mute switch with tactile operation
• Detachable flexible whip antenna
• Rugged metal housing for professional use
• Secure locking battery compartment
• Operates on two AA alkaline or rechargeable NiMH batteries
